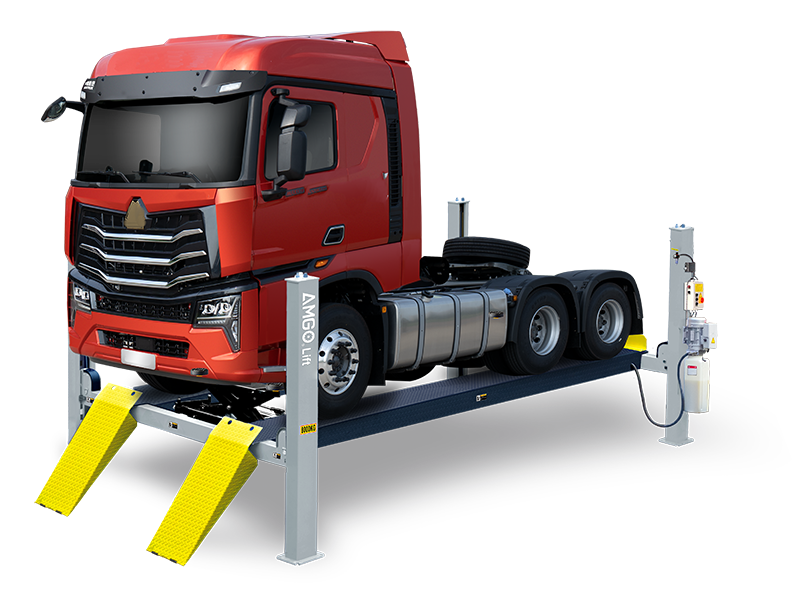

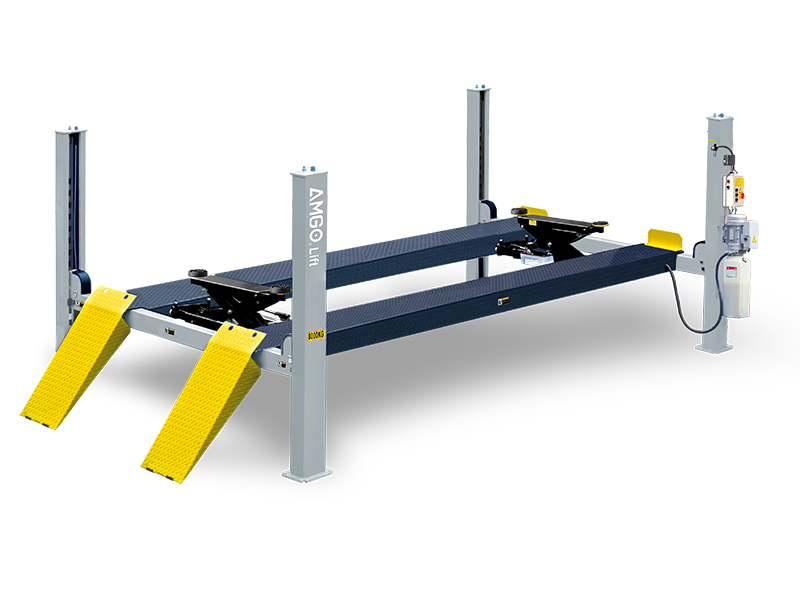

A480

HEAVY DUTY GENERAL SERVICE FOUR POST LIFT


Combining industrial durability with refined efficiency, the rugged 8000kg capacity A480 provides professional service for heavy-duty applications including buses, dump trucs, agricultural machinery and commercial fleets. Its precision engineered design ensures seamless operation with unparalleled workshop adaptability.

Detailed Product Information

  • Lifting capacity: 6500KG;
  • Heavy duty design, general service model, suitable for more vehicles;
  • Oversized long platforms accommodate to service more vehicles;
  • 24V safe electrical operation system;
  • Integrated non-skid diamond platforms;

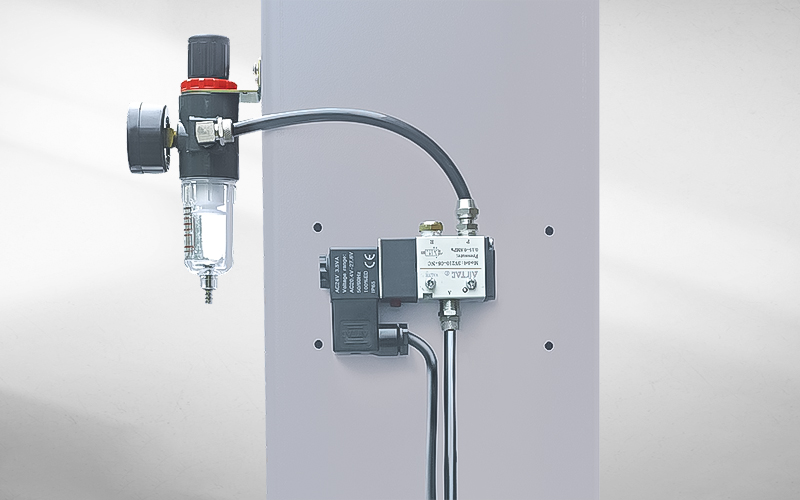

  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model



A480

Lifting Capacity



8000kg

Lifting Time



81s

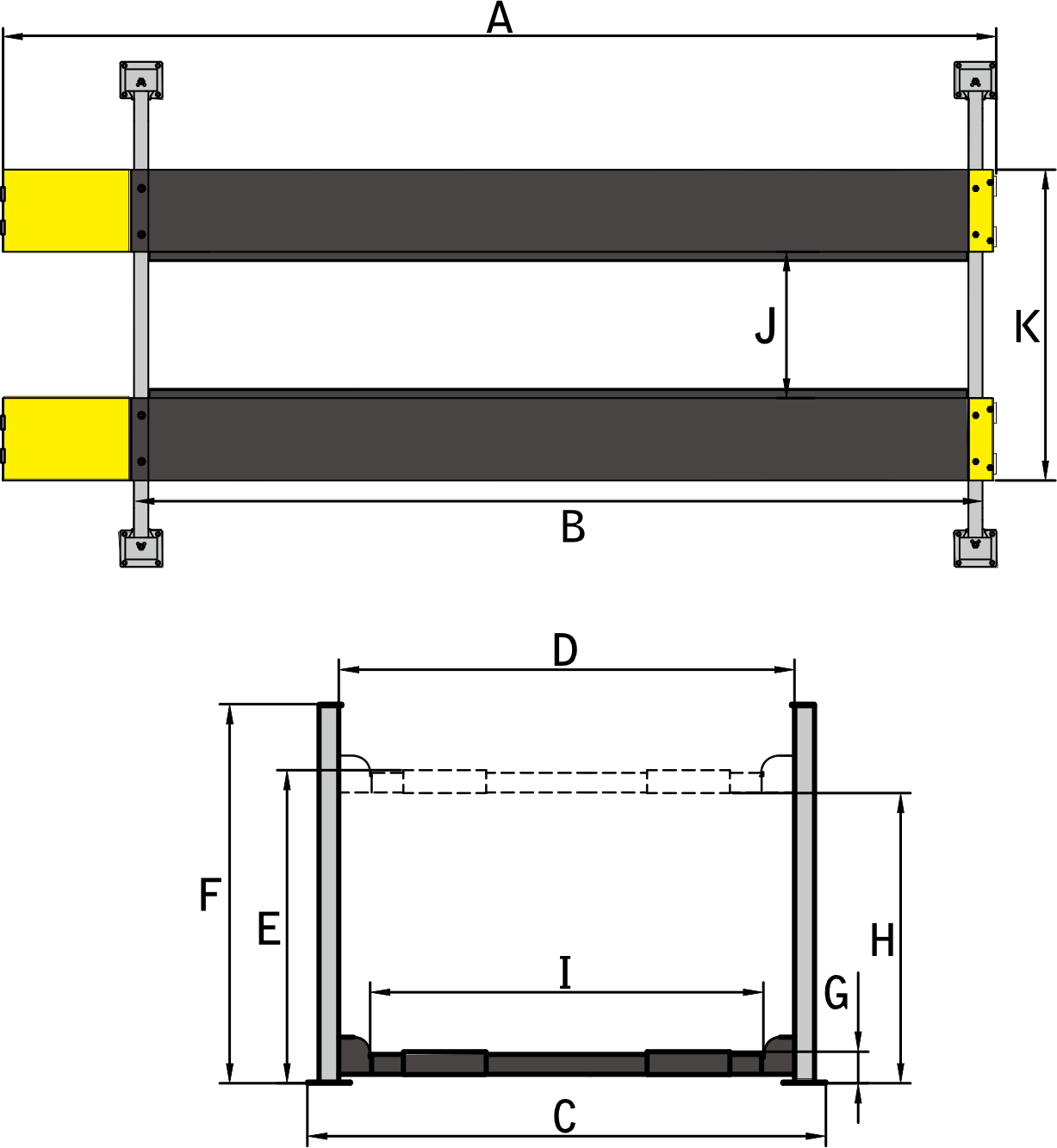

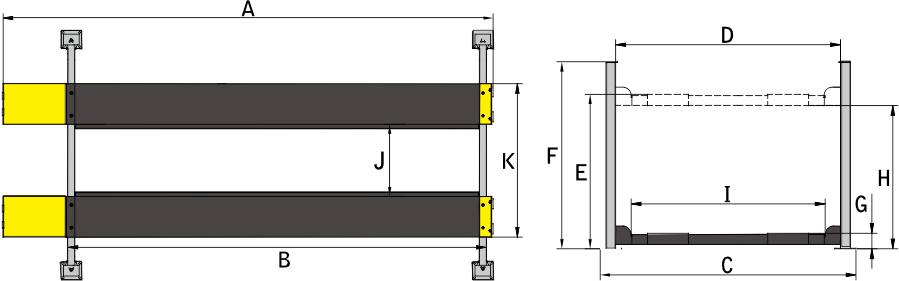

Overall Length(Inc Ramps)

A

7474mm

Outside Edge of Crossbeams

B

6250mm

Overal Width

C

3482mm

Width Between Columns

D

3108mm

Max. Lifting Height

E

1920mm

Max. Lock Height to top of runway

1830mm

Overall Height

F

2189mm

Minimum Height

G

200mm

Max. Underneath Height

H

1750mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2750mm

Width Between Runways

J

1168mm

Outside Edge of Runways

K

2284mm

Gross Weight



1584kg

Motor



3.0HP

QTY of Container



6 Units /40' GP









  •

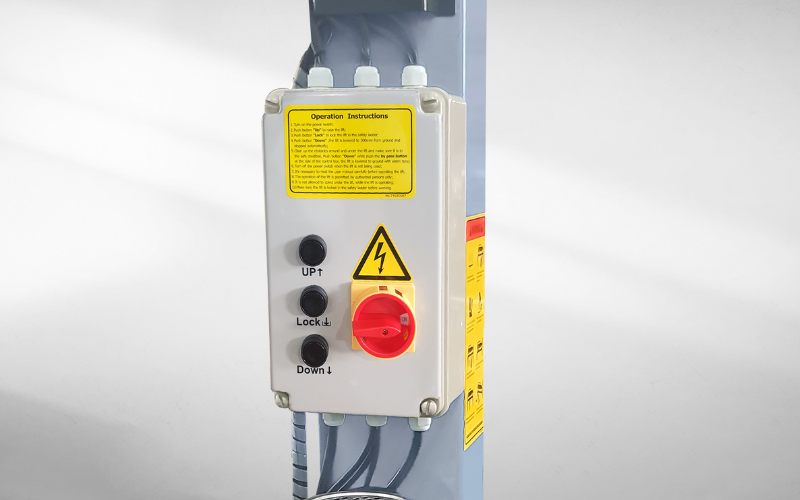

    Electric control device with UP,LOCK and DOWN buttons.

  •

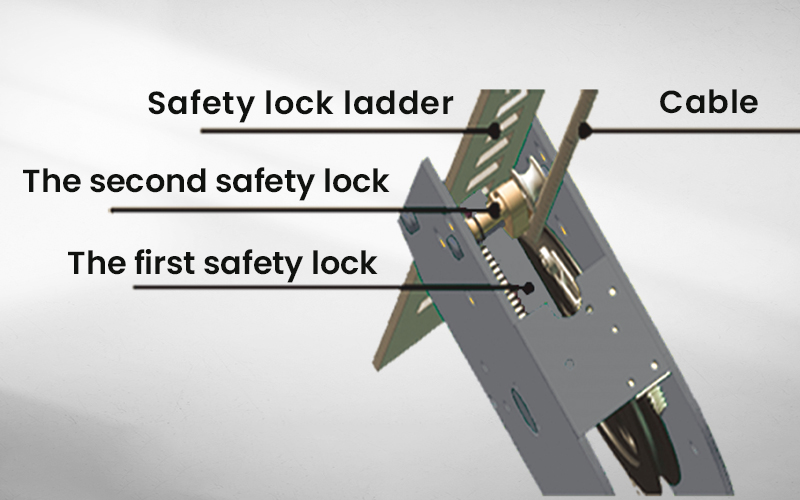

    Double safety locks provide additional safety.

  •

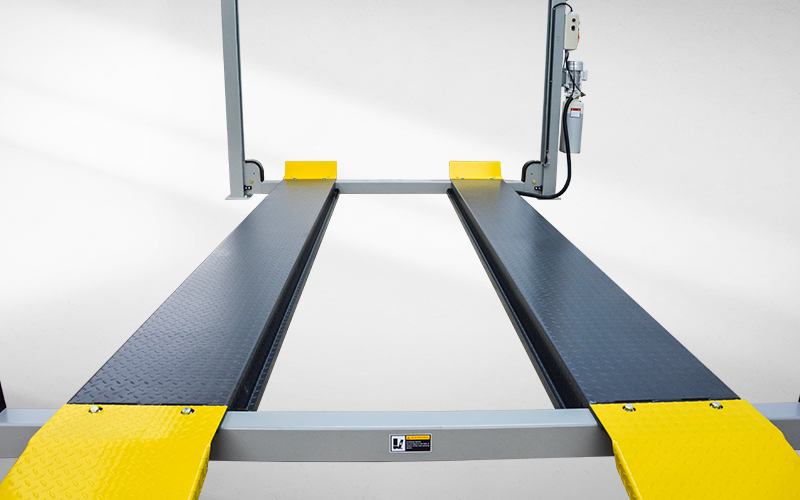

    Non-slip diamond platforms come as standard.

  •

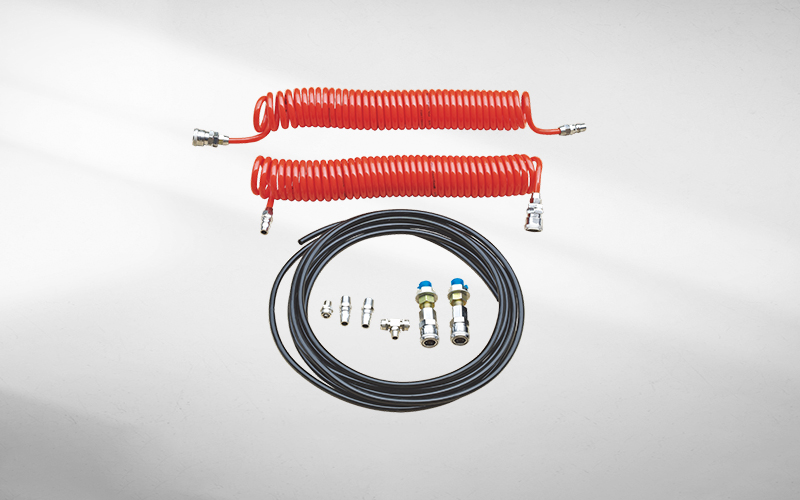

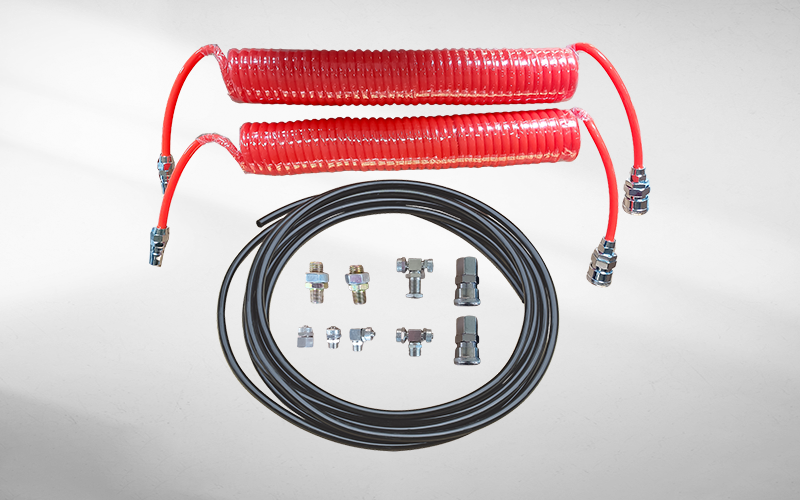

    Optional Air Line Kits
    All AMGO four post lifts are designed to use the air line kits for rolling jack. Kit No.:40102

  •

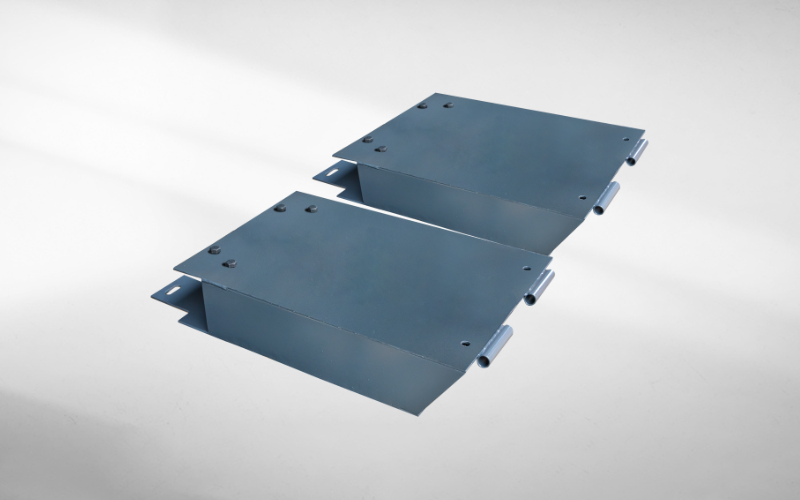

    Optional extension platform adds an extra 737mm length to the platform. Kits No.:41801-01

  •

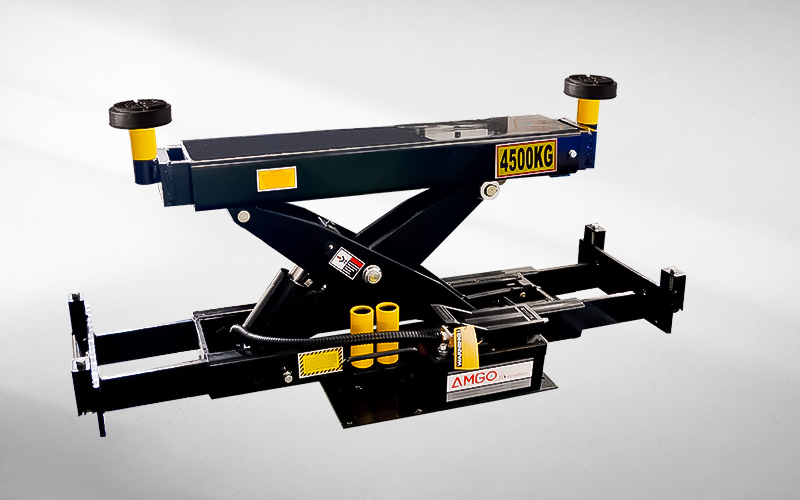

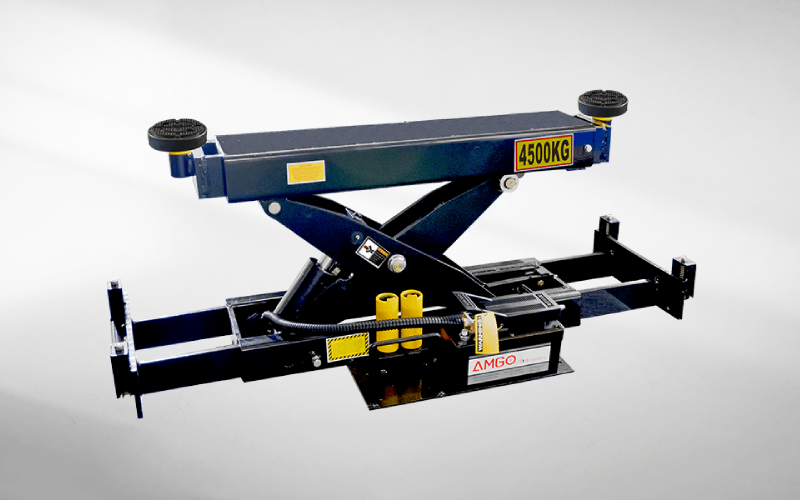

    Optional Rolling Jacks
    RJ-10A:manual hydraulic type 4,500kg.

  •
