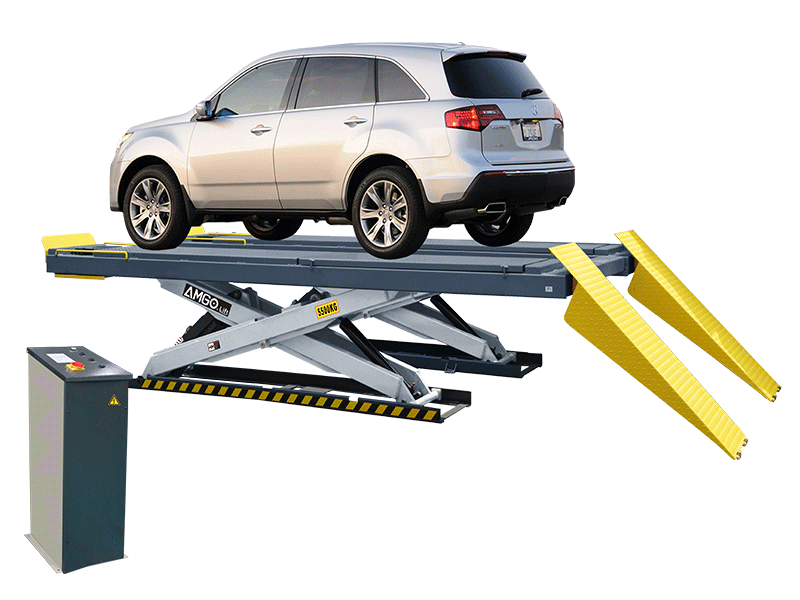

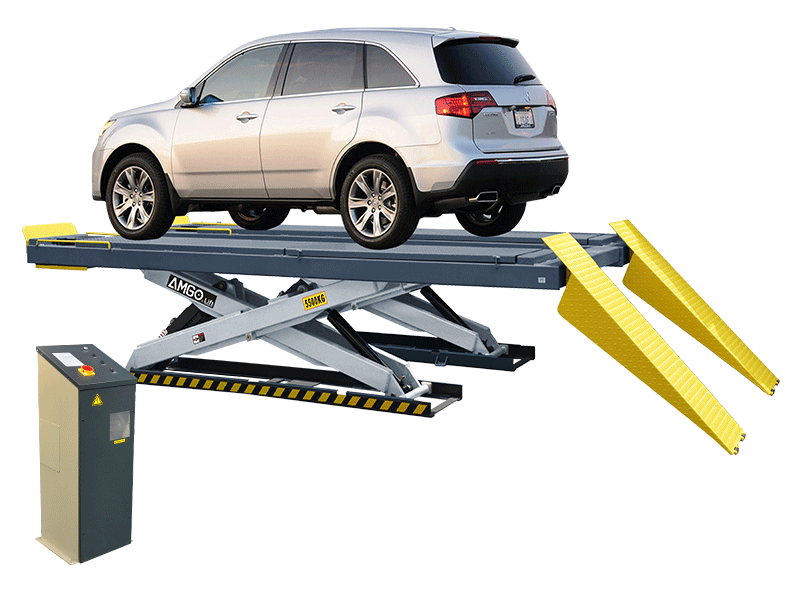

X550A

ALIGNMENT SCISSORS LIFT

This expertly engineered lift is the ideal partner for commercial automotive workshops that require a lift capable of meeting all their needs, for both wheel alignment and general servicing. With a lifting capacity of 5,500 kg, the X550A is based on the same heavy-duty design as the X500, with the added benefit of wheel alignment capability, making it suitable for servicing most vehicles, from passenger cars through to commercial vehicles.

Detailed Product Information

5500KG capacity, alignment model;
24V safe electrical operation system;
X scissors heavy duty structure for enhanced durability;
Features platform connecting bar to enhance the stability;

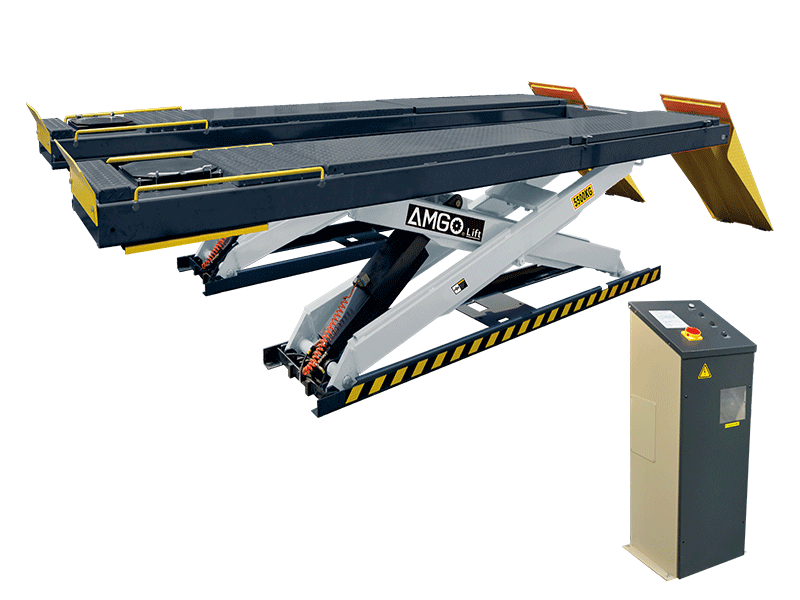

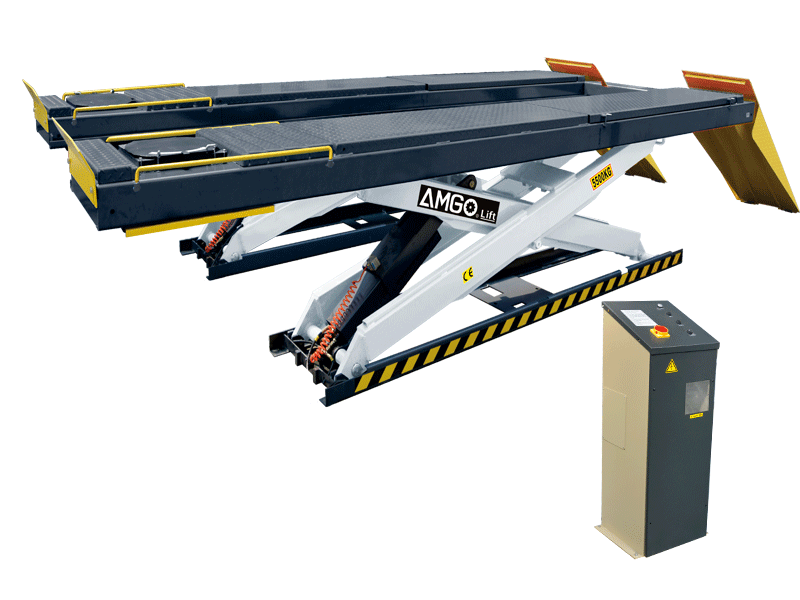

Electrical control operation system with a control cabinet;
Dual groups of four cylinders ensure platform synchronization;
Include both hydraulic lock and air-drive mechanical locks;
Large non-skid diamond platforms fit various vehicles;
Automatic safety stop at 600mm from the ground during decent;
Standard pull-out tool shelf included;
Adjustable turnplate positions accommodate various vehicles with differing wheelbases.

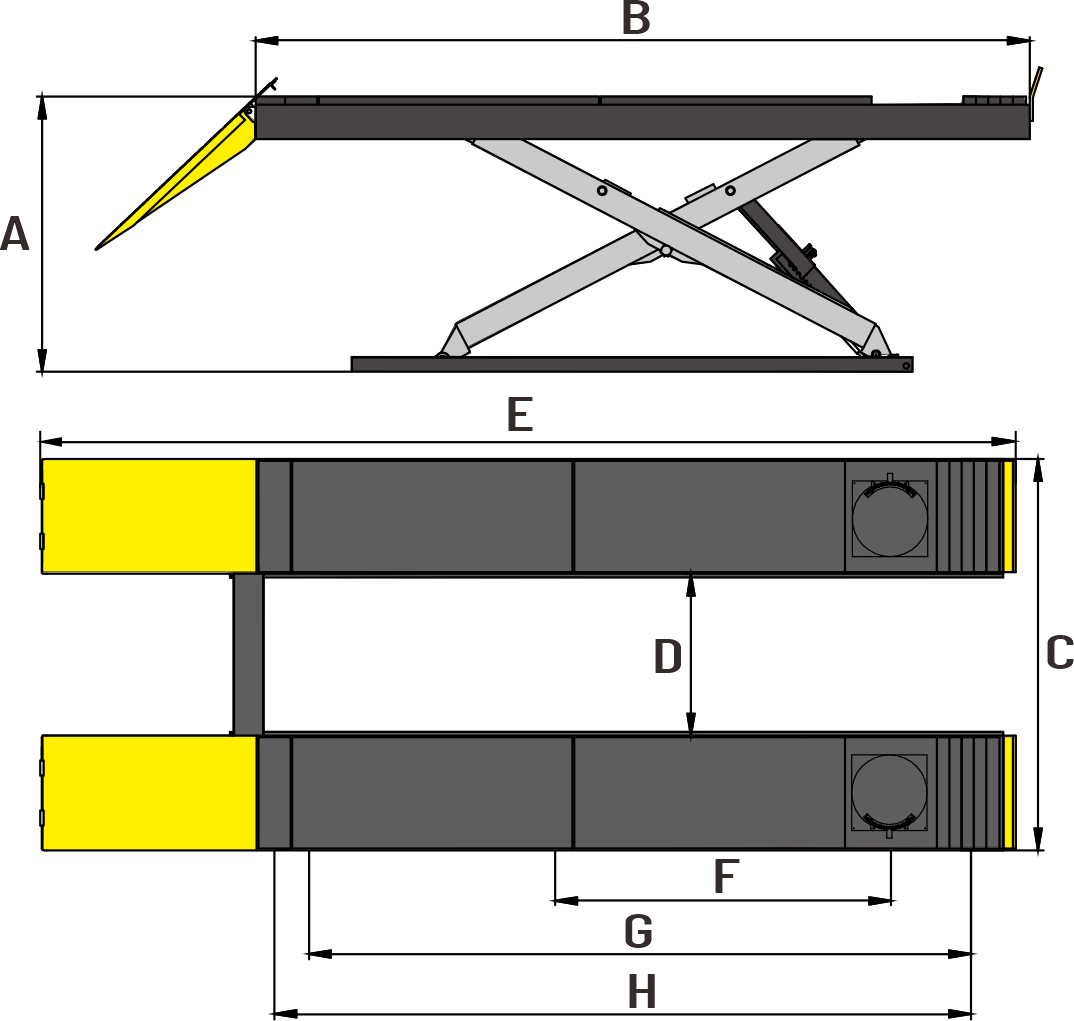

Model	X550A
Lifting Capacity	5500kg
Lifting Time	75s
A1:Max. Lifting Height	1850mm
A2:Minimum Height	305mm
B:Runway Length	5018mm
C:Overall Width	2290mm
D:Width Between Runways	1040mm
E:Overall Length(Inc. Ramps)	6554mm
F:Min. Four Wheel Align	2018mm
G:Max. Four Wheel Align	4266mm
H:Max. Two Wheel Align	4331mm
Gross Weight	2604kg
Motor	3.0HP
QTY of Container	6 Units / 20' GP

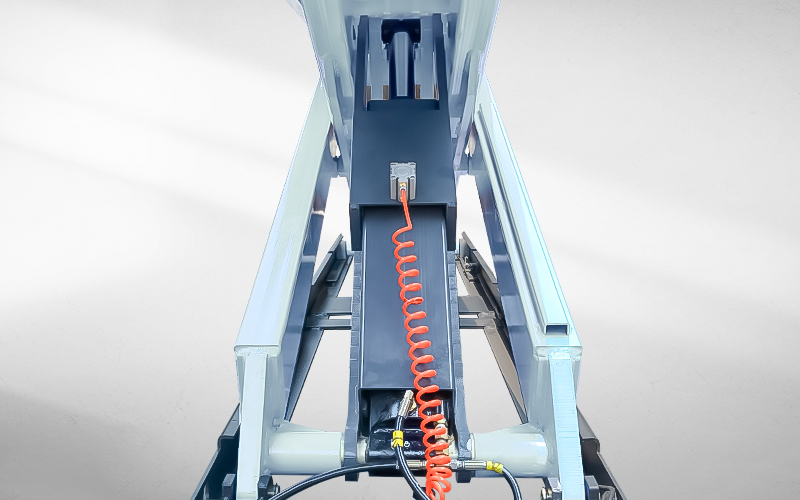

Electro-air control system, mechanical safety locks.

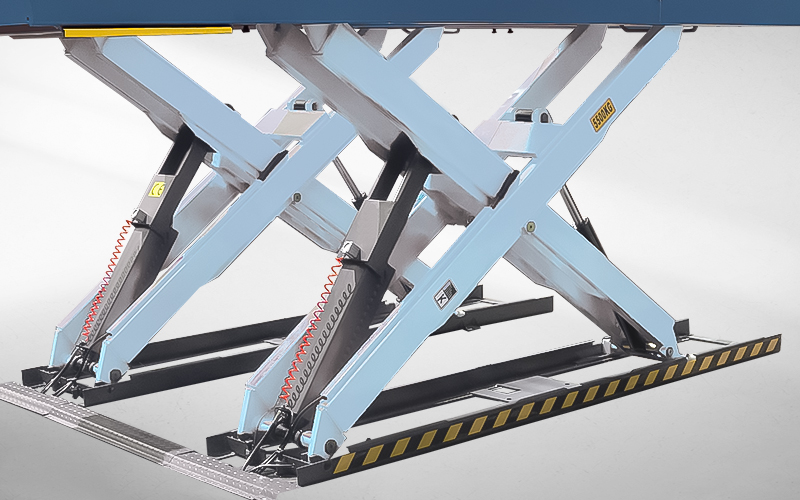

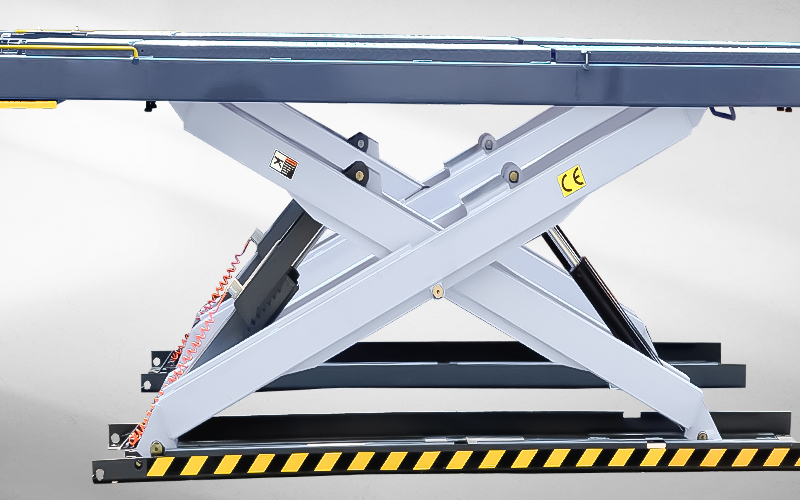

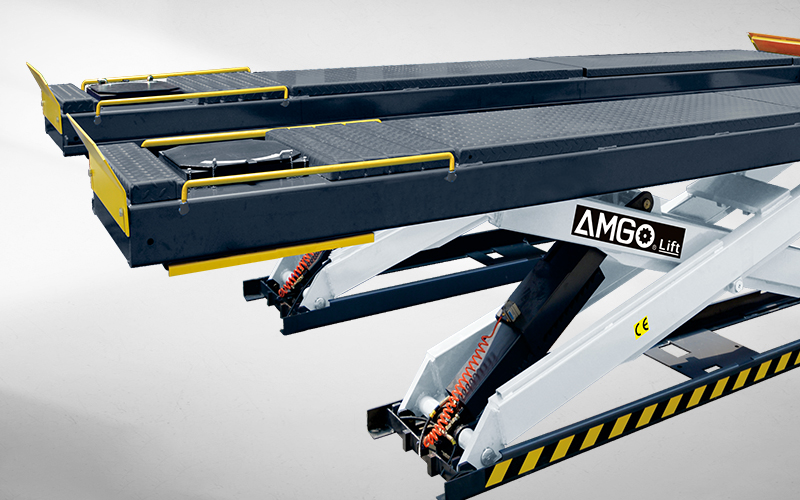

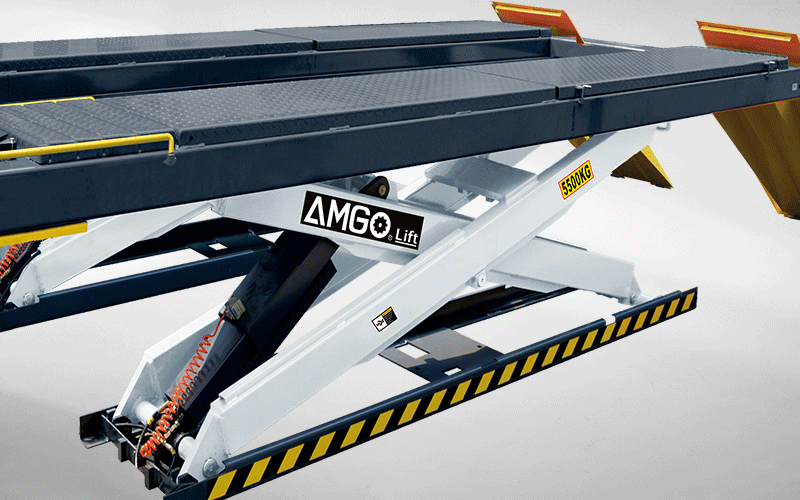

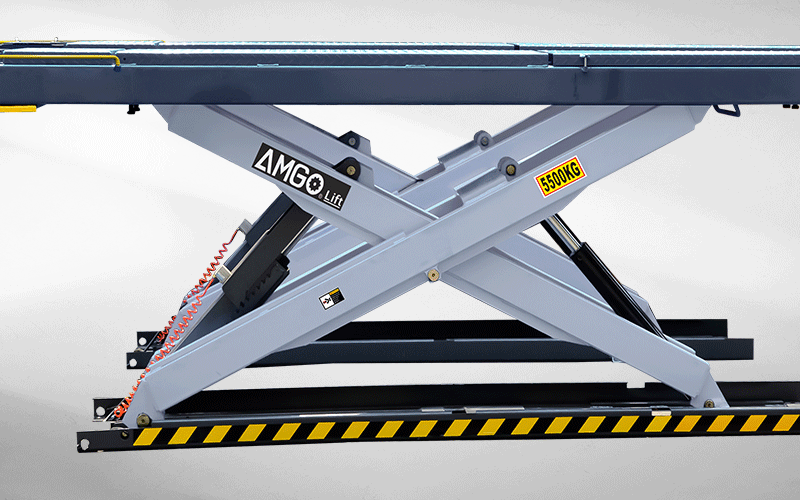

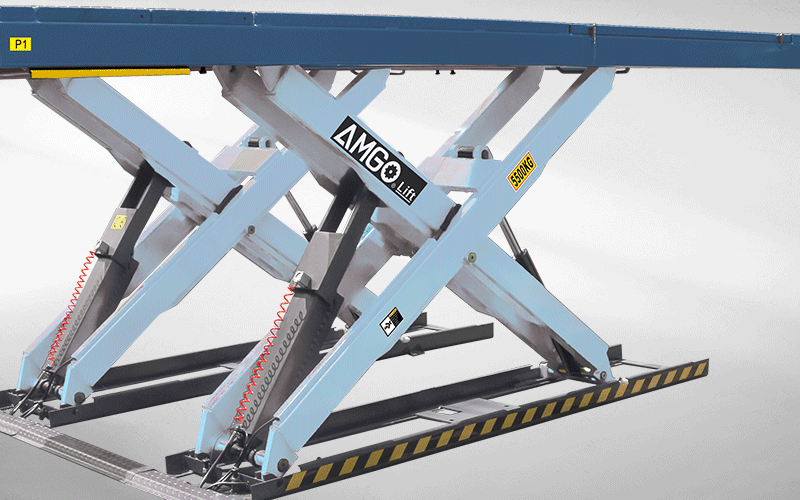

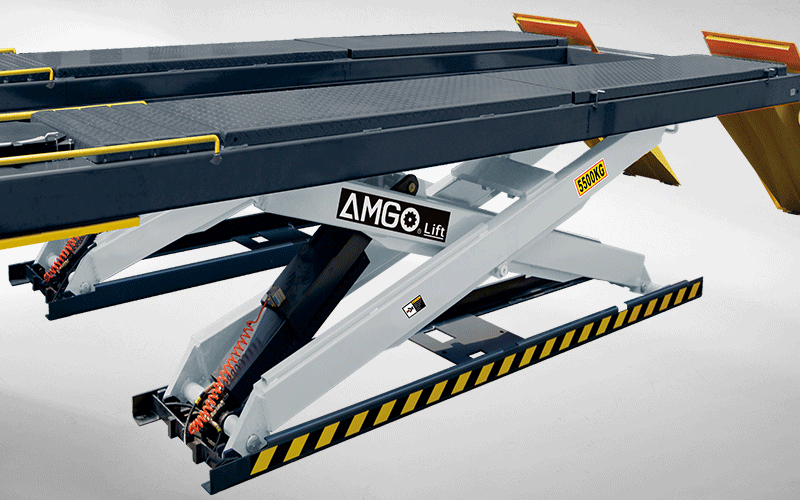

Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
Extremely long and wide non-skid diamond platforms are capable of servicing varying wheelbase vehicles.
Both hydraulic lock and mechnical lock mechanisms are equipped as standard.

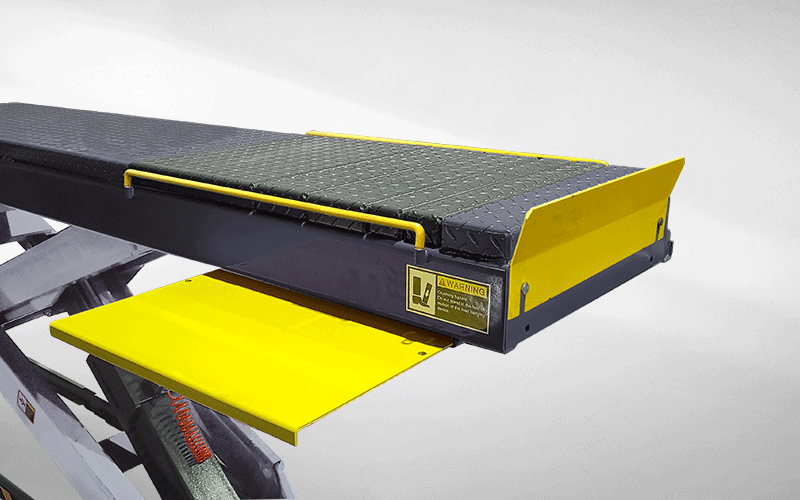

Nice design pull-out tool tray comes as standard.

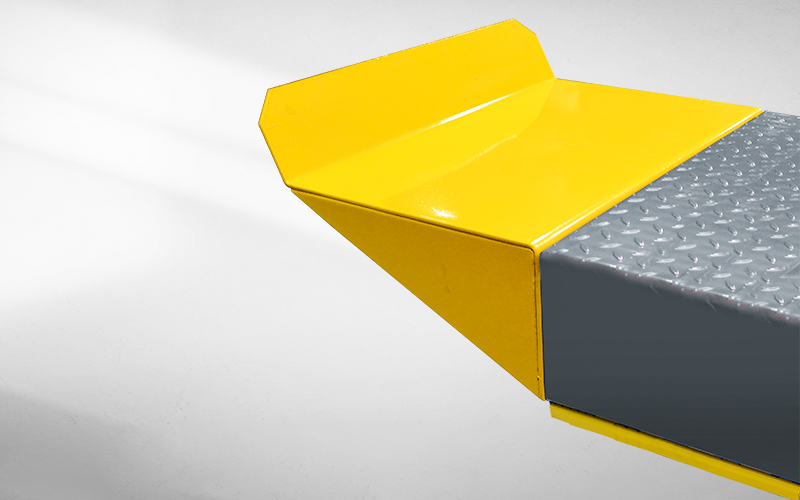

Optional extension platform
Kits No.: PX011

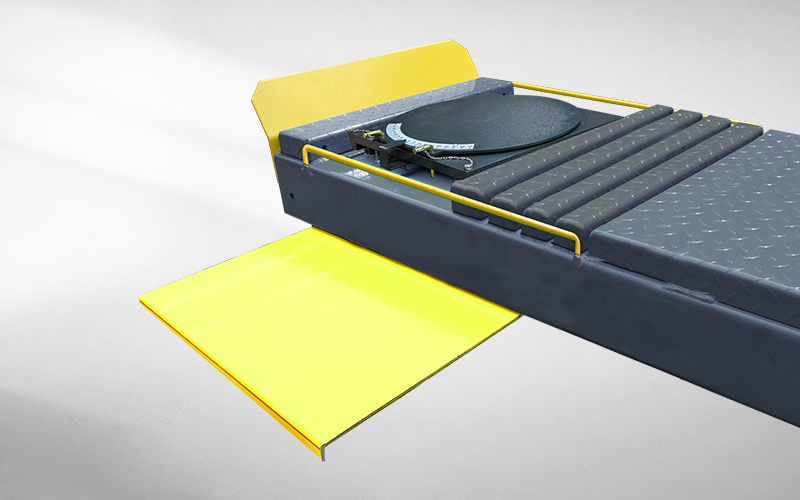

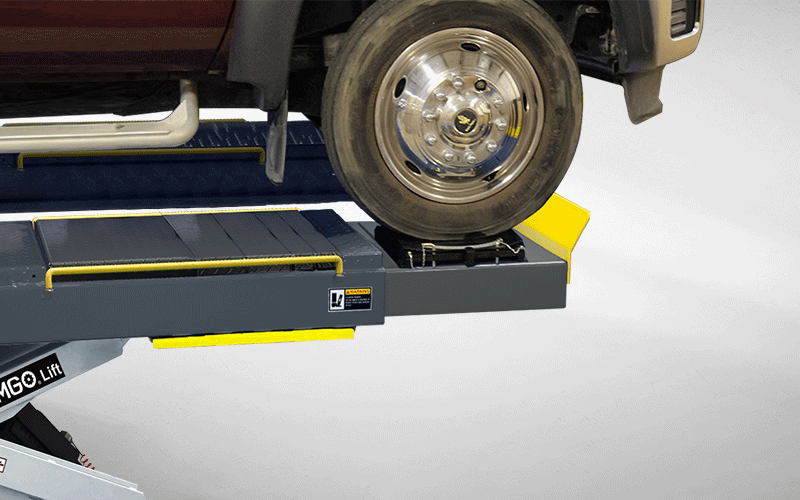

Optional Turnplate (1 unit).
Kits No.:40101

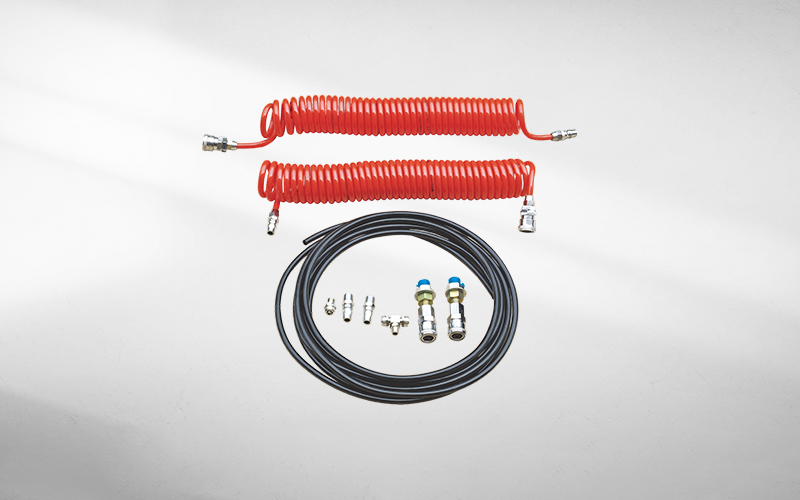

Optional air line kits
Kits No.: PX004

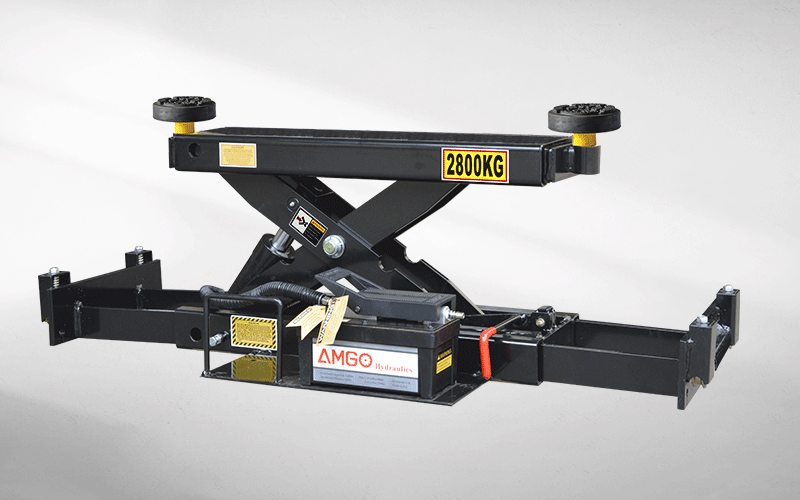

Optional Rolling Jacks
RJ-6H: manual hydraulic type2800kg
RJ-6A: pneumatic hydraulics type 2800kg
RJ-8A: pneumatic hydraulics type 3500kg

X550A

Electro-air control system, mechanical safety locks.

Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.

Extremely long and wide non-skid diamond platforms are capable of servicing varying wheelbase vehicles.

Both hydraulic lock and mechnical lock mechanisms are equipped as standard.

Nice design pull-out tool tray comes as standard.

Optional extension platform
Kits No.: PX011

Optional Turnplate (1 unit).
Kits No.:40101

Optional air line kits
Kits No.: PX004

Optional Rolling Jacks
RJ-6H: manual hydraulic type2800kg
RJ-6A: pneumatic hydraulics type 2800kg
RJ-8A: pneumatic hydraulics type 3500kg
