model: A250SACH (5000KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Lifting capacity: 5000kg.Strong heavy duty steel construction.
• Clear floor design, for an unobstructed floor space.
• Dual hydraulic direct-drived cylinders, designed and made on high standard.
• Self-lubricating UHMW Polyethylene slider blocks.
• Aero sync cable assy. used for synchronization.
• 3in1 height setting: one set cables for 3 setting heights.
•
arms allow to load different Vehicles in an asymmetric or symmetric configuration.
• Both drop-in and screw rubber pads with 3" and 6" extension adapters.
• Automatic arm locks restraints and release.
• Safy 24V electrical control box with manual safety release.
• Overhead safety shut-off device.
• Comes standard with detachable foot guards and tool trays.
|

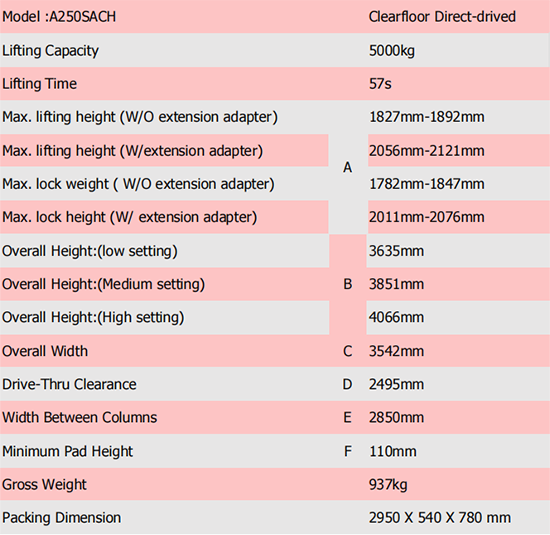

Model :A250SACH |
|
Clearfloor Direct-drived |
|
Lifting Capacity |
|
5000kg |
|
Lifting Time |
|
57s |
|
Max. lifting height (W/O extension adapter) |
A |
1827mm-1892mm |
|
Max. lifting height (W/extension adapter) |
2056mm-2121mm |
|
|
Max. lock weight ( W/O extension adapter) |
1782mm-1847mm |
|
|
Max. lock height (W/ extension adapter) |
2011mm-2076mm |
|
|
Overall Height:(low setting) |
B |
3635mm |
|
Overall Height:(Medium setting) |
3851mm |
|
|
Overall Height:(High setting) |
4066mm |
|
|
Overall Width |
C |
3542mm |
|
Drive-Thru Clearance |
D |
2495mm |
|
Width Between Columns |
E |
2850mm |
|
Minimum Pad Height |
F |
110mm |
|
Gross Weight |
|
953kg |
|
Packing Dimension |
|
2950 X 540 X 780 mm |
