model: A240 (4000KG)

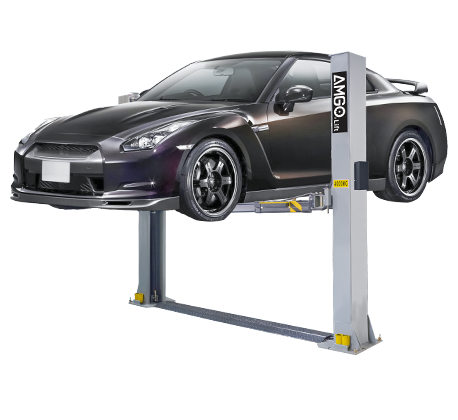

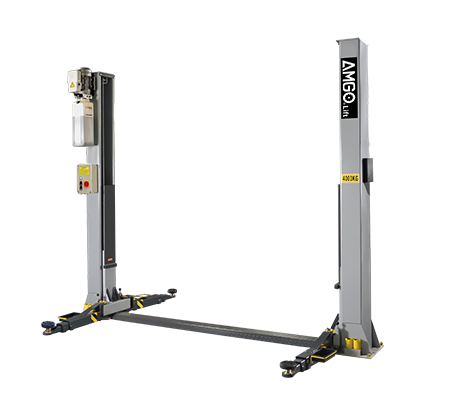

FLOORPLATE CHAIN-DRIVED TWO-POST LIFT
AMGO introduces a revolutionary double lock system installed in both columns that automatically activated as the lift is raised. The A240, with its base plate design, also features 4 three-stage arms, making it an ideal model for low-ceiling workshops, providing efficient service for a wide range of vehicles.
  • Features
  • Specifications
  • Detailed Image

Detailed Product Information

• Lifting capacity: 4000KG;

•The floor plate's open top design allows it to lift various vehicles in low ceiling garages;

• 24V safe electrical control system, with high limit switch device;

• Revolutionary auto-activating double lock system;

Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;

Four 3-stage arms are suitable for more vehicle;

• Aero cables are used for synchronization;

• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;

• Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;

• Automatic arms restraints;

• Detachable foot guards and tool trays come standard.




Model A240

Floorplate chain-drived two-post lift

Lifting Capacity

4000kg

Lifting Time

37s

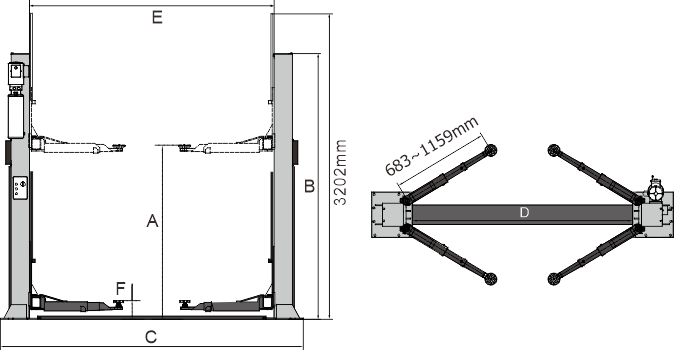

Max. Lifting height: (w/o extension adapter)

A

1814mm~1846mm

Max. Lifting height:  (w/ extension adapter)

1890mm~1922mm

Max. lock height:  (w/o extension adapter)

1774mm~1806mm

Max. lock height:  (w/ extension adapter)

1850mm~1882mm

Overall Height

B

2742mm

Overall Width

C

3350mm

Drive-Thru Clearance

D

2493mm

Width Between Columns

E

2770mm

Minimum Pad Height

F

89mm

Gross Weight

613kg

Motor

3.0HP

QTY of Container

25 Units/20'GP

50 Units/40'GP

Packing Dimension

2855 X 450 X 760 mm
