model: 430（13500KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Two adjustable turntable positions to accommodate different wheel base.
• Adjustable platform and adjustable safety lock ladders.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also. be locked automatically by a second safety device.
|
Model 430 |
|
Super Duty General Service Four Post Lift |
|
Lifting Capacity |
|
13500kg |
|
Lifting Time |
|
116s |
|

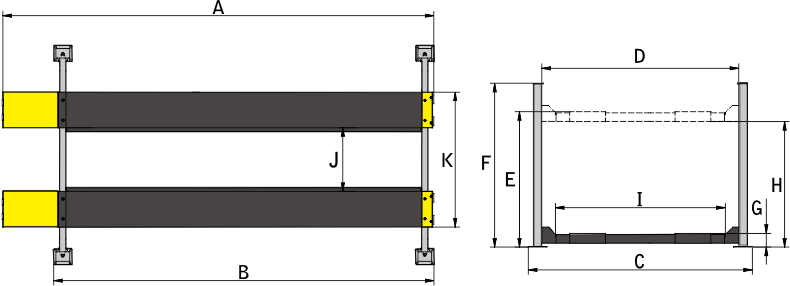

Overall Length (Inc Ramps) |
A |
7800mm |
|
Overall Length (No Ramps) |
B |
6514mm |
|
Overall Width |
C |
3794mm |
|
Width Between Columns |
D |
3348mm |
|
Max.Lifting Height |
E |
1920mm |
|
Max. Lock Height to top of runway |
1820mm |
|
|
Overall Height |
F |
2332mm |
|
Minimum Height |
G |
240mm |
|
Max.Underneath Height |
H |
1694mm |
|
Max. Lock Underneath runway |
1595mm |
|
|
Drive-Thru Clearance |
I |
2992mm |
|
Width Between Runways |
J |
1140mm/1390mm |
|
Outside Edge of Runways |
K |
2360mm/2610mm |
|
Gross Weight |
|
2490kg |
|
Motor |
|
4.0 HP |
|
Packing Dimension |
|
6560 X 620 X1000 mm |
|
|
|
|
