model: 410AWX (4500KG)
- Features
- Specifications
- Detailed Image

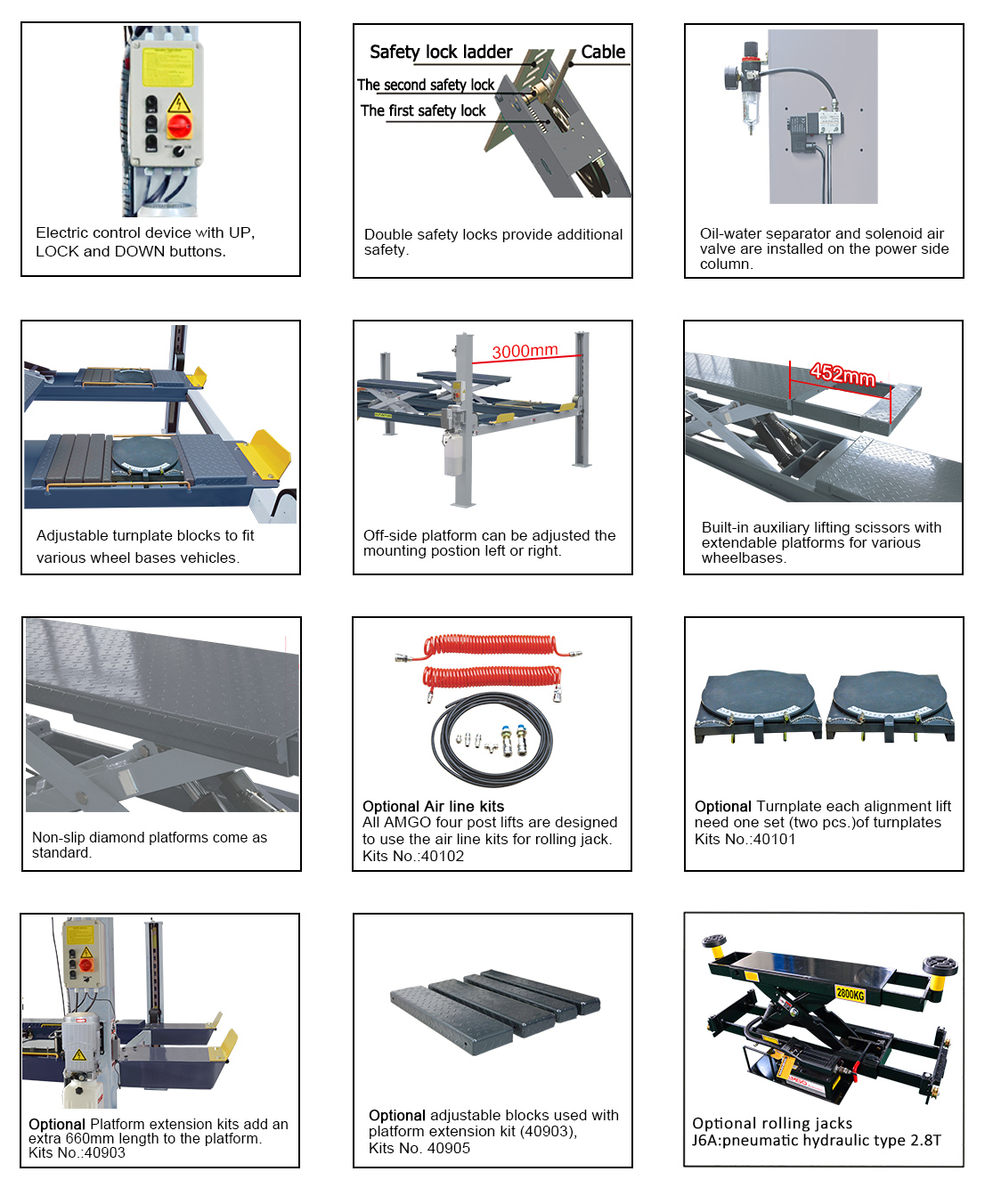

Detailed Product Information
• Lifting capacity: 4500KG.
• Built-in auxiliary lifting scissors (capacity 3500KG) with extendable platforms.
• 24V electrical control operation system.
• High quality hydraulic cylinder design and manufactured at high standard.
• Mechanical self-locking and air-release safety lock system.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platform.
• Adjustable lifting platform: off-side platform can be adjusted the mounting position left or right as
required. The standard distance between two platforms is 1100mm and maximum distance is 1365mm.
• Hidden installation of oil hoses and cables to avoid exposure outside.
• Adjustable turnplate postions to fit various vehicles with different wheel bases.
|
Model 410AWX |
|
ALIGNMENT FOUR POST LIFT |
|
Lifting Capacity |
|
4500kg |
|
Scissors Lifting Capacity |
|
3500kg |
|
Lifting Time |
|
45s |
|

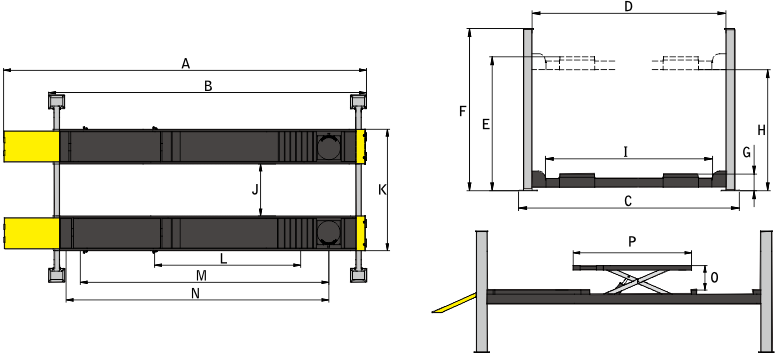

Overall Length(Inc Ramps) |
A |
5910mm |
|
Overall Lenght（No Ramps） |
B |
4998mm |
|
Overall Width |
C |
3356mm |
|
Width Between Columns |
D |
3000mm |
|
Max. Lifting Height |
E |
1937mm |
|
Max. Lock Height to top of runway |
1850mm |
|
|
Overall Height |
F |
2185mm |
|
Minimum Height |
G |
190mm |
|
Max. Underneath Height |
H |
1747mm |
|
Max. Lock Underneath runway |
1660mm |
|
|
Drive-Thru Clearance |
I |
2646mm |
|
Width Between Runways |
J |
1063mm |
|
Outside Edge of Runways |
K |
2153mm |
|
Min. Four Wheel Align |
L |
2080mm |
|
Max. Four Wheel Align |
M |
3905mm |
|
Max. Two Wheel Align |
N |
4050mm |
|
Scissors Lifting Height |
O |
420mm |
|
Scissors Runway Lenght |
P |
1592-1917mm |
|
Gross Weight |
|
1728kg |
|
Motor |
|
3.0HP |
|
QTY of Comtainer |
|
12 Units/20'GP |
|
Packing Dimension |
|
5100 X 560 X 750mm |
