model: A480(8000KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Two adjustable turntable positions to accommodate different wheel base.
• Adjustable platform and adjustable safety lock ladders.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also. be locked automatically by a second safety device.
|
Model A480 |
|
GENERAL SERVICE FOUR POST LIFT |
|
Lifting Capacity |
|
8000kg |
|
Lifting Time |
|
81s |
|

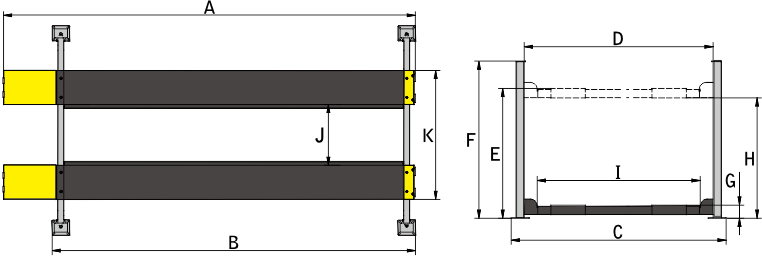

Overall Length (Inc Ramps) |
A |
7449mm |
|
Overall Length (No Ramps) |
B |
6408mm |
|
Overall Width |
C |
3482mm |
|
Width Between Columns |
D |
3108mm |
|
Max.Lifting Height |
E |
1922mm |
|
Max. Lock Height to top of runway |
1830mm |
|
|
Overall Height |
F |
2189mm |
|
Minimum Height |
G |
182mm |
|
Max.Underneath Height |
H |
1752mm |
|
Max. Lock Underneath runway |
1660mm |
|
|
Drive-Thru Clearance |
I |
2750mm |
|
Width Between Runways |
J |
1302mm Min.85mm~Max.1468mm |
|
Outside Edge of Runways |
K |
2418mm Min.1201mm~Max.2584mm |
|
Gross Weight |
|
1596kg |
|
Motor |
|
3.0 HP |
|
Packing Dimension |
|
6460 X 610 X 860 mm |
