model: 440E(18000KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Two adjustable turntable positions to accommodate different wheel base.
• Adjustable platform and adjustable safety lock ladders.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also. be locked automatically by a second safety device.
|
Model 440E |
|
Super Duty General Service Four Post Lift |
|
Lifting Capacity |
|
18000kg |
|
Lifting Time |
|
160s |
|

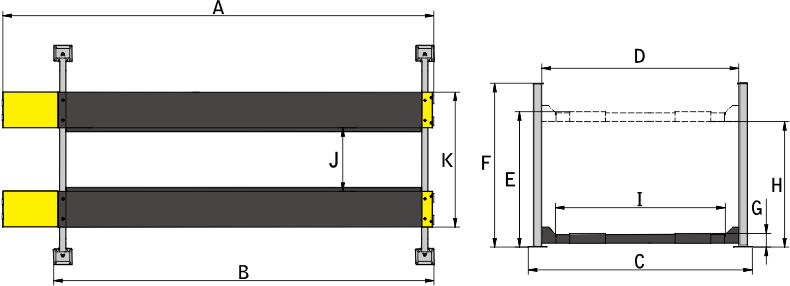

Overall Length (Inc Ramps) |
A |
10800mm |
|
Overall Length (No Ramps) |
B |
9514mm |
|
Overall Width |
C |
4100mm |
|
Width Between Columns |
D |
3654mm |
|
Max.Lifting Height |
E |
1924mm |
|
Max. Lock Height to top of runway |
1820mm |
|
|
Overall Height |
F |
2332mm |
|
Minimum Height |
G |
244mm |
|
Max.Underneath Height |
H |
1698mm |
|
Max. Lock Underneath runway |
1595mm |
|
|
Drive-Thru Clearance |
I |
3298mm |
|
Width Between Runways |
J |
1140mm/1496mm |
|
Outside Edge of Runways |
K |
2666mm/2916mm |
|
Gross Weight |
|
4234kg |
|
Motor |
|
4.0 HP |
|
Packing Dimension |
|
9560 X 720 X1000 mm |
