model: A268C (6800KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Heavy duty design, lifting capacity: 6800KG;
• Clear-floor design, enables an unobstructed floor use;
• 24V safe electrical control system, with high limit switch device;
• Overhead safety shut-off device prevents vehicle damage;
• Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;
• Super high design with adjustable three-height settings;
• Super wide design with a width between columns over 3100mm;
• Four 2-stage rugged arms offer ample stability to lift various heavy vehicles;
• 3in1 Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Both single-screw rubber pads and saddle adapters are equipped as standard;
• Both 3” and 6” extension adapters are equipped as standard;
• Automatic arms restraints;
• Detachable foot guards and tool trays come standard.
|

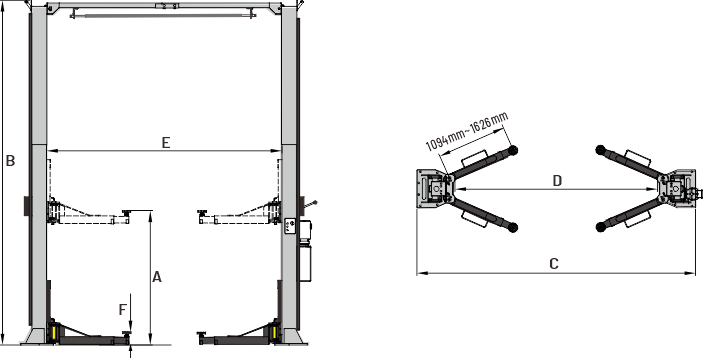

Model A268C |
|
Clearfloor Direct-drived |
|
Lifting Capacity |
|
6800kg |
|
Lifting Time |
|
84s |
|
Max. Lifting height: (w/o extension adapter) |
A |
1902mm~1936mm |
|
Max. Lifting height: (w/ extension adapter) |
2131mm~2165mm |
|
|
Max. lock height: (w/o extension adapter) |
1852mm~1886mm |
|
|
Max. lock height: (w/ extension adapter) |
2081mm~2115mm |
|
|
Overall Height:(low setting) |
B |
4420mm |
|
Overall Height:(Medium setting) |
4725mm |
|
|
Overall Height:(High setting) |
5030mm |
|
|
Overall Width |
C |
3829mm |
|
Drive-Thru Clearance |
D |
2787mm |
|
Width Between Columns |
E |
3137mm |
|
Minimum Pad Height |
F |
175mm |
|
Gross Weight |
|
1086kg |
|
Motor |
|
3.0HP |
|
QTY of Container |
|
14 Units/20'GP |
|
Packing Dimension |
|
2950 X 540 X 1065 mm |
