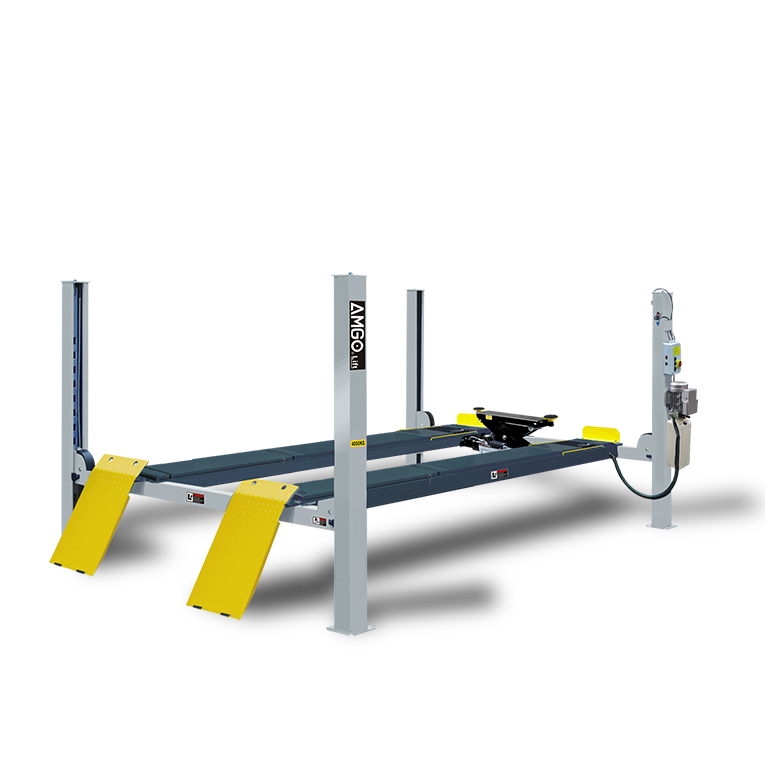

model: A440 (4000KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Lifting capacity: 4000KG, CE certified.
• 24V electrical control operation system.
• High quality hydraulic cylinder design and manufactured at high standard.
• Mechanical self-locking and air-release safety lock system.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platform.
• Adjustable lifting platform: off-side platform can be adjusted the mounting position left or right as
required. The standard distance between two platforms is 1100mm and maximum distance is 1300mm.
• Hidden installation of oil hoses and cables to avoid exposure outside.
|

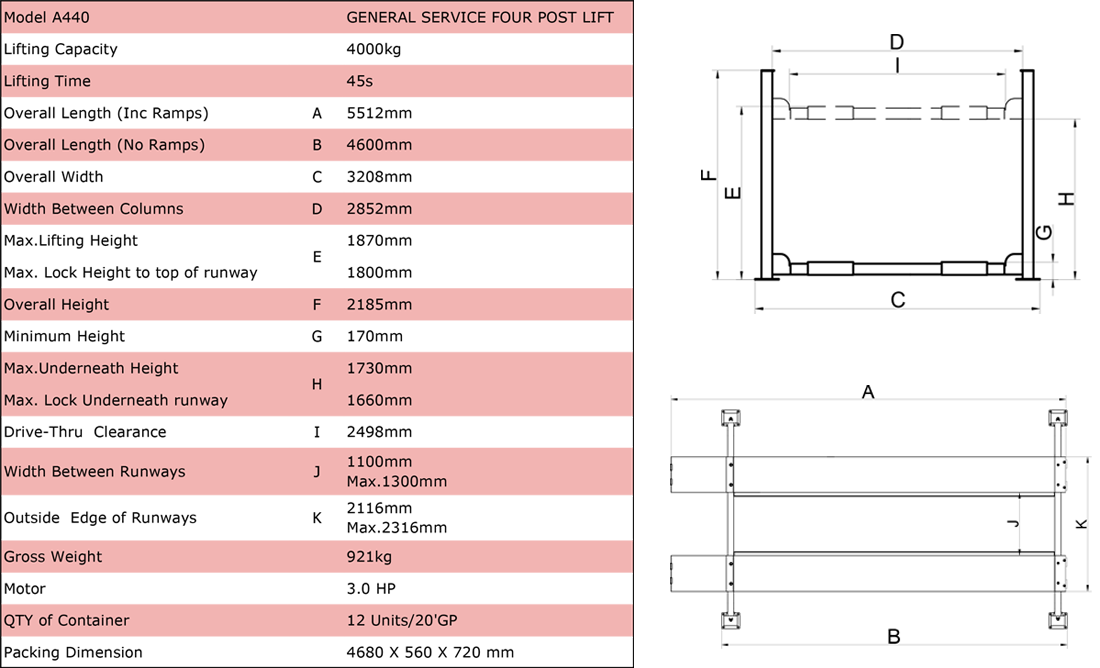

Model A440 |
|
GENERAL SERVICE FOUR POST LIFT |
|
Lifting Capacity |
|
4000kg |
|
Lifting Time |
|
45s |
|

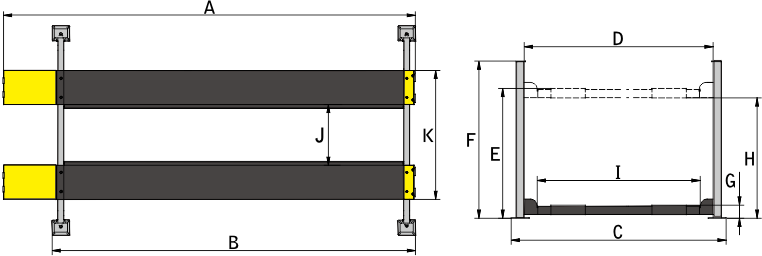

Overall Length (Inc Ramps) |
A |
5512mm |
|
Overall Length (No Ramps) |
B |
4600mm |
|
Overall Width |
C |
3208mm |
|
Width Between Columns |
D |
2852mm |
|
Max.Lifting Height |
E |
1887mm |
|
Max. Lock Height to top of runway |
1800mm |
|
|
Overall Height |
F |
2185mm |
|
Minimum Height |
G |
147mm |
|
Max.Underneath Height |
H |
1747mm |
|
Max. Lock Underneath runway |
1660mm |
|
|
Drive-Thru Clearance |
I |
2498mm |
|
Width Between Runways |
J |
1100mm Min.85mm~Max.1300mm |
|
Outside Edge of Runways |
K |
2116mm Min.1101mm~Max.2316mm |
|
Gross Weight |
|
921kg |
|
Motor |
|
3.0 HP |
|
QTY of Container |
|
12 Units/20'GP |
|
Packing Dimension |
|
4680 X 560 X 720 mm |
