model: E240 (4000KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Lifting capacity: 4000KG;
•The floor plate's open top design allows it to lift various vehicles in low ceiling garages;
• 24V safe electrical control system, with high limit switch device;
• Revolutionary auto-activating double lock system;
• Equipped with automatic electromagnet safety release;
• Four 3-stage arms are suitable for more vehicle;
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Detachable foot guards and tool trays come standard.
|

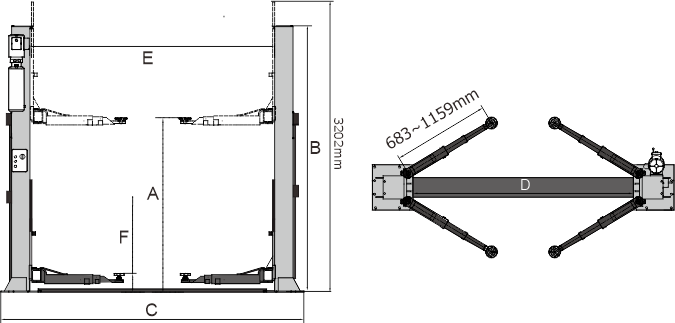

Model E240 |
|
Floorplate chain-drived two-post lift |
|
Lifting Capacity |
|
4000kg |
|
Lifting Time |
|
37s |
|
Max. Lifting height: (w/o extension adapter) |
A |
1830mm~1862mm |
|
Max. Lifting height: (w/ extension adapter) |
1906mm~1938mm |
|
|
Max. lock height: (w/o extension adapter) |
1784mm~1816mm |
|
|
Max. lock height: (w/ extension adapter) |
1860mm~1892mm |
|
|
Overall Height |
B |
2742mm |
|
Overall Width |
C |
3350mm |
|
Drive-Thru Clearance |
D |
2493mm |
|
Width Between Columns |
E |
2770mm |
|
Minimum Pad Height |
F |
89mm |
|
Gross Weight |
|
613kg |
|
Motor |
|
3.0HP |
|
QTY of Container |
|
24 Units/20'GP 48 Units/40'GP |
