model: S400F

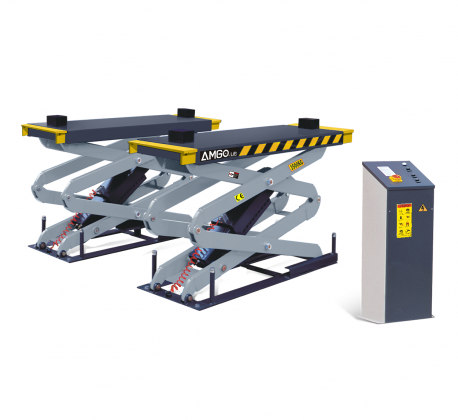

In-ground Full rise scissor lift
Easy access, Easy work underneath. The new S400F
strengthens the structure and adds extra extendable platforms to fit for longer, heavier vehicles. The in-ground design offers a unobstructed access and clear garage. It is the perfect model for a full function and space saving lift.
- Features
- Specifications
- Detailed Image
Detailed Product Information
• 4000kg Lifting capacity.
• CE certified.

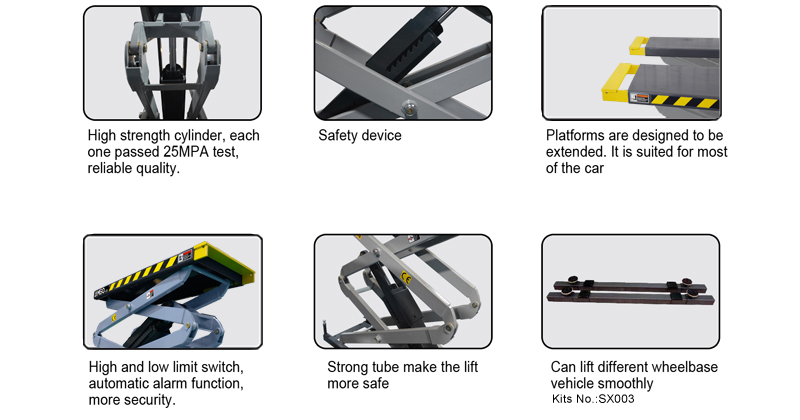

• Hydraulic equalization systems supported by 2 cylinders.
• Automatic mechanical safety device with pneumatic release.
• Photocell configuration
• Adjustable platform length from 1654-2054mm.
• Unobstructed access allowed between ramps.
• Convenient to work underneath
• AMGO standard 5-3-2 years warranty policy.
| Model | S400F |
| Lifting Capacity | 4000kg |
| Lifting Time | 49 S |
| A:Max. Lifting Height | 2230mm |
| B:Minimum Heigh | 350mm |
| C:Runway Length | 1654-2054mm |
| D:Overall Width | 1900mm |
| E:Width Between Runways | 800mm |
| Gross Weigh | 863kg |
| Motor | 3.0HP |
