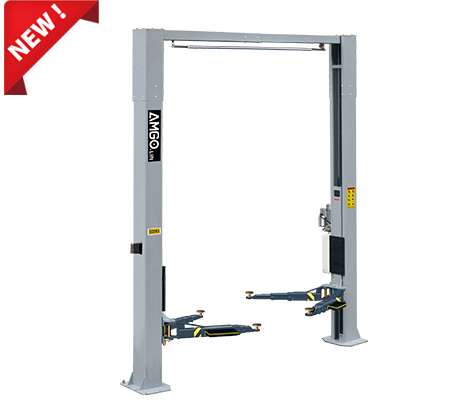

model: E250CX (5000KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Lifting capacity:5000KG;
• Clear-floor design, enables an unobstructed floor use;

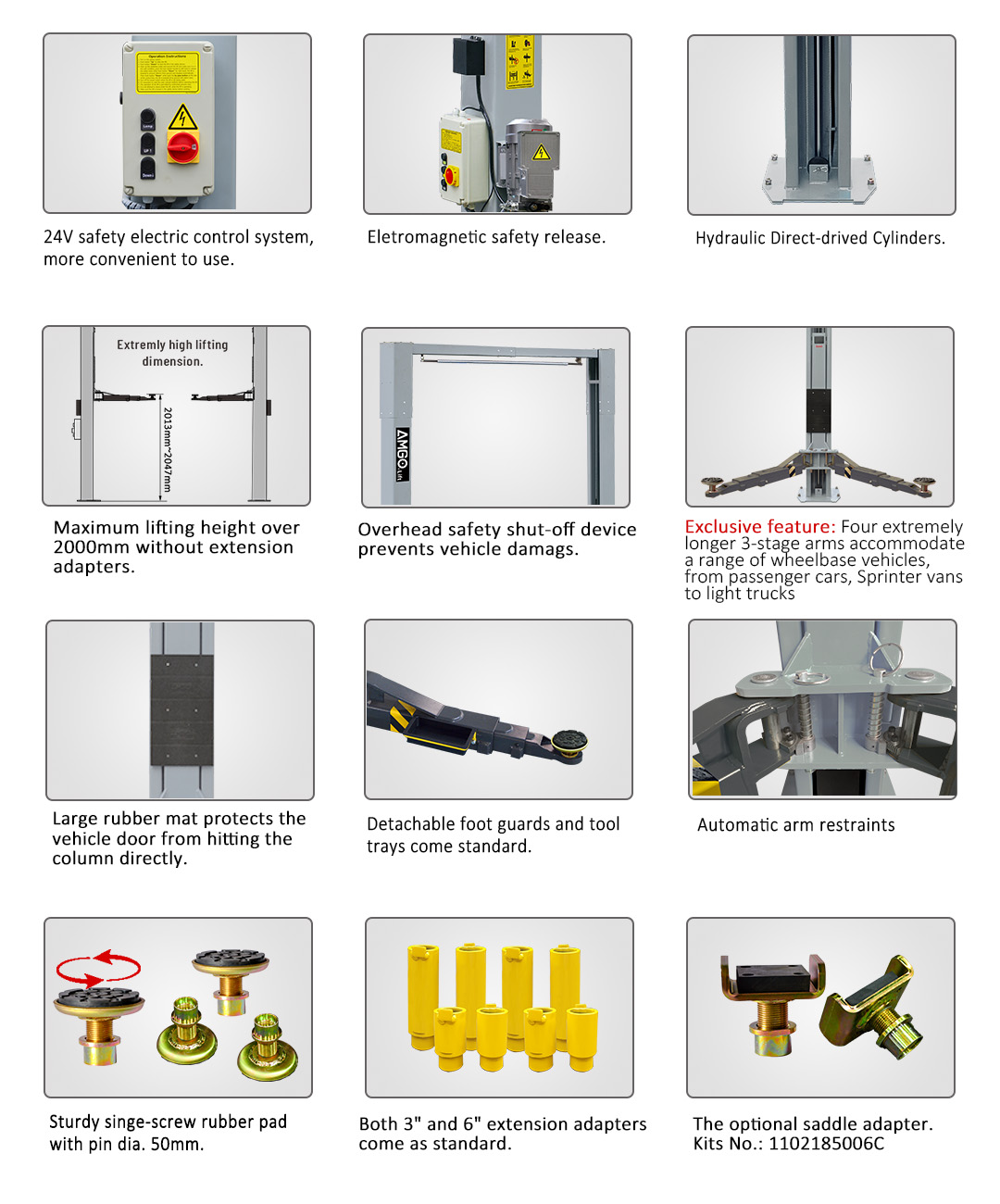

• 24V safe electrical control system, with high limit switch device;
• Overhead safety shut-off device prevents vehicle damage;
• Equipped with automatic electromagnet safety release;
• Extra-long four 3-stage arms are suitable for more vehicle;
• Extremely long carriages enhance the stability and durability;
• Super high design with adjustable 2-height settings;
• Maximum lifting height over 2000mm without extension adapters;
• Super wide design with a width between columns at 3000mm ;
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Sturdy singe-screw rubber pad with pin dia. 50mm, comes with 3" and 6" extension adapters;
• Automatic arms restraints;
• Detachable foot guards and tool trays come standard.
|
Model E250CX |
|
Clear Floor two post lift |
|
Lifting Capacity |
|
5000kg |
|
Lifting Time |
|
64s |
|
Max. Lifting height: (w/o extension adapter) |
A |
2013mm~2047mm |
|
Max. Lifting height: (w/ extension adapter) |
2242mm~2276mm |
|
|
Max. lock height: (w/o extension adapter) |
1973mm~2007mm |
|
|
Max. lock height: (w/ extension adapter) |
2202mm~2236mm |
|
|
Overall Height |
B |
4224/4502mm |
|
Overall Width |
C |
3666mm |
|
Drive-Thru Clearance |
D |
2710mm |
|
Width Between Columns |
E |
3000mm |
|
Minimum Pad Height |
F |
108mm |
|
Gross Weight |
|
871 KG |
|
Motor |
|
3.0HP |
|
QTY of Container |
|
12 Units/20'GP |
|
Packing Dimension |
|
3920 X 510 X 820 mm |
