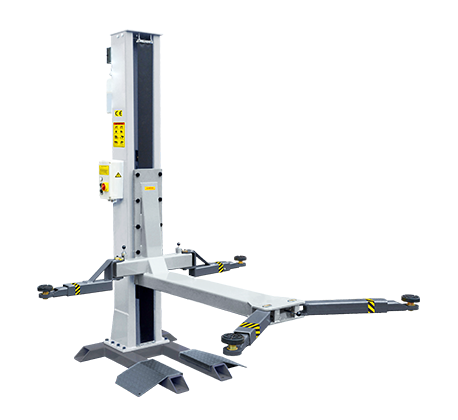

model: SL-3000
- Features
- Specifications
- Detailed Image
Detailed Product Information

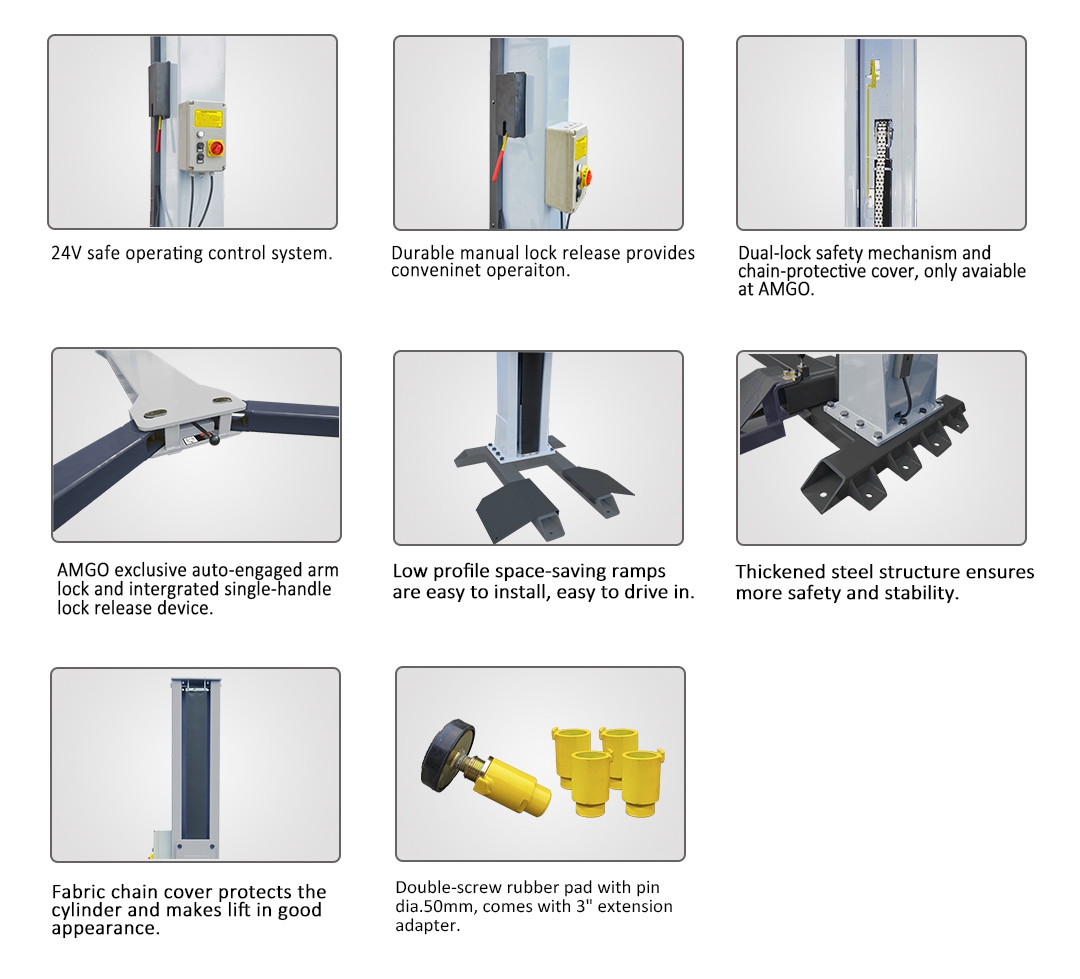

- 3000KG capacity;
- 24V safe electrical operation system;
- Compact design with a minimal footprint;
- Exclusive auto-activating double lock system;
- Exclusive auto-engaged arm lock and integrated single-handle lock release; auto-activating double lock system;
- Manual lock release;
- Low profile space-saving ramps;
- Fabric curtain cover comes standard;
- Double-screw rubber pads with 3” extension adapters.
|
Model SL-3000 |
|
Single post lift |
|
Lifting Capacity |
|
3000kg |
|
Lifting Time |
|
38s |
|

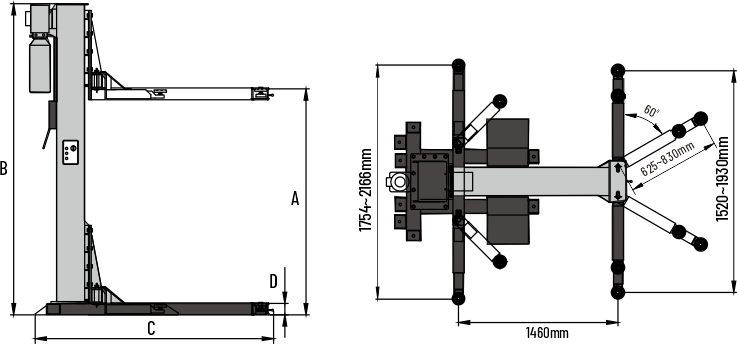

Max. Lifting height: (w/o extension adapter) |
A |
1803~1825mm |
|
Max. Lifting height: (w/ extension adapter) |
1879~1928mm |
|
|
Max. lock height: (w/o extension adapter) |
1713~1762mm |
|
|
Max. lock height: (w/ extension adapter) |
1789~1838mm |
|
|
Overall Height |
B |
2780mm |
|
Overall Width |
C |
2146mm |
|
Minimum Pad Height |
D |
89mm |
|
Gross Weight |
|
688kg |
|
Motor |
|
3.0HP |
