model: A435-P
- Features
- Specifications
- Detailed Image
Detailed Product Information
• 3500kg lifting capacity
• AMGO exclusive hidden safety locks and manual single-point release
device allows operators to unlock the safety locks from one column
• Double-S shaped columns for increased the columns strength• Non-slip platform provides traction for the tires to stay put
• Dual safety devices: In case the primary safety locks are out of operation, the lift would also be
locked automatically by a secondary safety device
• Multi safety locks in each column
• Adjustable lock ladder
• Flexible : The power side column can be installed at any corner
• Portable: It can be moved easily by using the caster kits
• Warranty:
5 years: Steel structured components
2 years: Hydraulic parts and bronze bush
|

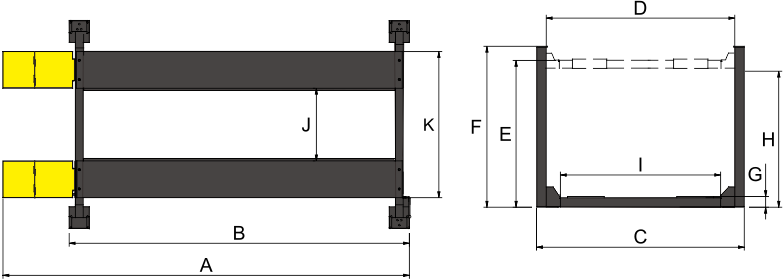

Model A435-P |
|
4-Post Parking Lift |
|
Lifting Capacity |
|
3500kg |
|
Lifting Time |
|
38s |
|
Overall Length (Inc Ramps) |
A |
5265mm |
|
Outside edge of crossbeams |
B |
4238mm |
|
Overall Width |
C |
2604mm |
|
Width Between Posts |
D |
2358mm |
|
Max.Lifting Height |
E |
1880mm |
|
Max locking height |
1792mm |
|
|
Overall Height |
F |
2105mm |
|
Minimum Height |
G |
140mm |
|
Max.Underneath Height |
H |
1760mm |
|
Max. Lock Underneath runway |
1672mm |
|
|
Drive-Thru Clearance |
I |
2074mm |
|
Width Between Runways |
J |
940mm |
|
Outside Edge of Runways |
K |
1890mm |
|
Gross Weight |
|
747kg |
|
Motor |
|
3.0HP |
