model: A430-P
4-POST PARKING LIFT
The A430-P is a perfect parking lift for shops or home garage with limited floor space. The A430-P is also well-suited for low-profile cars.
  • Features
  • Specifications
  • Detailed Image

Detailed Product Information

• 3000kg lifting capacity

• AMGO exclusive hidden safety locks and manual single-point release

device allows operators to unlock the safety locks from one column

• Double-S shaped columns for increased the columns strength

• Non-slip platform provides traction for the tires to stay put

• Dual safety devices: In case the primary safety locks are out of operation, the lift would also be locked automatically by a secondary safety device

• Multi safety locks in each column

• Adjustable lock ladder

• Flexible : The power side column can be installed at any corner
• Portable: It can  be moved easily by using the caster kits
• Warranty:

5 years: Steel structured components

2 years: Hydraulic parts and bronze bush

1 years: Electrical components and cable


Model A430-P

4-Post Parking Lift

Lifting Capacity

3000kg

Lifting Time

31s

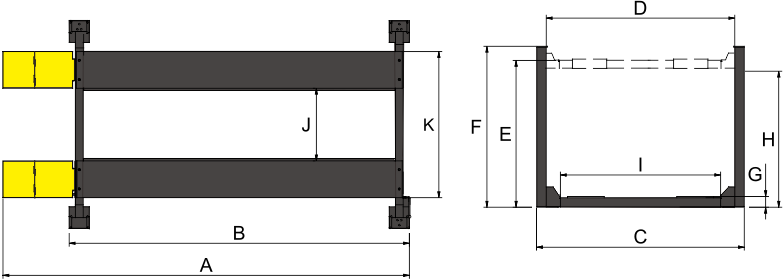

Overall Length (Inc Ramps)

A

4720mm

Outside edge of crossbeams

B

3700mm

Overall Width

C

2409mm

Width Between Posts

D

2167mm

Max.Lifting Height

E

1860mm

Max locking height

1792mm

Overall Height

F

2105mm

Minimum Height

G

120mm

Max.Underneath Height

H

1760mm

Max. Lock Underneath runway

1692mm

Drive-Thru Clearance

I

1956mm

Width Between Runways

J

940mm

Outside Edge of Runways

K

1890mm

Gross Weight

654kg

Motor

3.0HP

QTY of Container

12Units/20'GP

36Units/40'GP
