model: A245LX (4500KG)

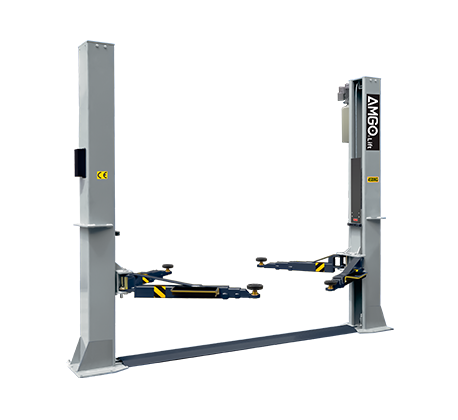

FLOORPLATE CHAIN-DRIVED TWO-POST LIFT
With its robust structure and 4500KG capacity, the A245LX offers superior power to expand your business and effortlessly service a wide range of vehicle sizes and weight classes, from small cars to long wheelbase and heavy vehicles. Additionally, its base plate design ensures compatibility with low ceiling workshops.
  • Features
  • Specifiction
  • Detailed Image

Detailed Product Information

• Lifting capacity: 4500kg.

• Electrical control operation system, high limit device.

• Dual hydraulic chain-drive cylinders manufactured on high standard.

• Every cylinder has passed the 25MPa test.

• 4 three-stages arms are suitable for different vehicles.

• Screw and stackable adapters design of rubber pad with 3” extension adapters to adjust in speedy.

• Automatic arms restraints.

• Self-lubricating UHMW Polyethylene sliders and bronze bush.

• Single-point safety release, and dual safety design.

• Detachable foot guard and tool tray.

Model A245LX

Floorplate chain-drived two-post lift

Lifting Capacity

4500kg

Lifting Time

49s

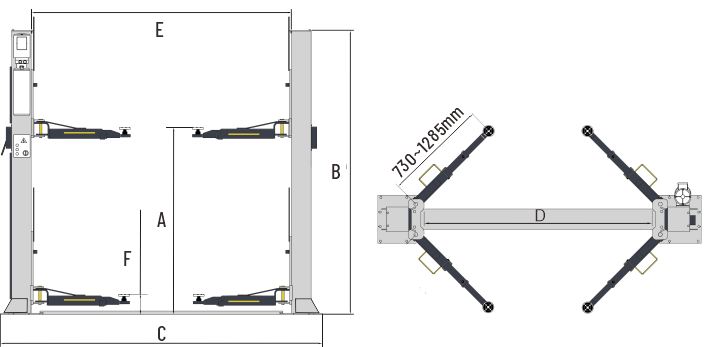

Max. Lifting height: (w/o extension adapter)

A

1955mm

Max. Lifting height:  (w/ extension adapter)

2184mm

Max. lock height:  (w/o extension adapter)

1915mm

Max. lock height:  (w/ extension adapter)

2144mm

Overall Height

B

2841m

Overall Width

C

3534mm

Drive-Thru Clearance

D

2560mm

Width Between Columns

E

2850mm

Minimum Pad Height

F

90mm

Gross Weight

770kg

Motor

3.0HP

QTY of Container

20 Units/20'GP                             40 Units/40'GP

Packing Dimension

2915 X 510 X 865 mm
