model: A465(6500KG)
- Features
- Specifications
- Detailed Image
Detailed Product Information
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Two adjustable turntable positions to accommodate different wheel base.
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 1194mm and maximum distance is 1385mm.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also.be locked automatically by a second safety device.
|

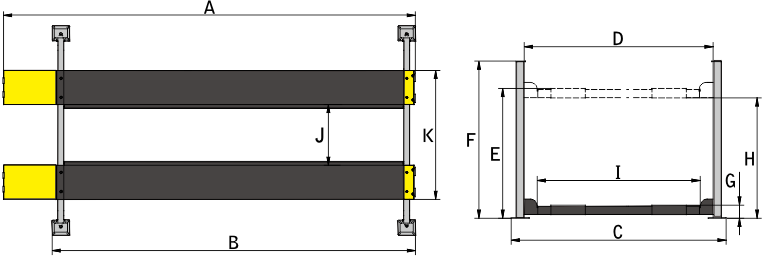

Model A465 |
|
GENERAL SERVICE FOUR POST LIFT |
|
Lifting Capacity |
|
6500kg |
|
Lifting Time |
|
79s |
|
Overall Length (Inc Ramps) |
A |
6541mm |
|
Overall Length (No Ramps) |
B |
5500mm |
|
Overall Width |
C |
3324mm |
|
Width Between Columns |
D |
2946mm |
|
Max.Lifting Height |
E |
1922mm |
|
Max. Lock Height to top of runway |
1830mm |
|
|
Overall Height |
F |
2189mm |
|
Minimum Height |
G |
182mm |
|
Max.Underneath Height |
H |
1752mm |
|
Max. Lock Underneath runway |
1660mm |
|
|
Drive-Thru Clearance |
I |
2592mm |
|
Width Between Runways |
J |
1194mm Min.85mm~Max.1385mm |
|
Outside Edge of Runways |
K |
2210mm Min.1101mm~Max.2401mm |
|
Gross Weight |
|
1272kg |
|
Motor |
|
3.0 HP |
|
Packing Dimension |
|
5550 X 560 X 830 mm |
