model: X550A

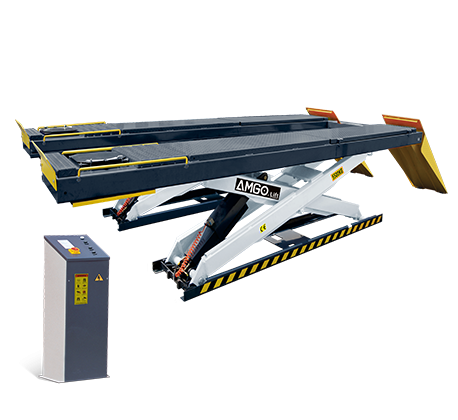

ALIGNMENT SCISSORS LIFT
AMGO Scissors lifts, the same as AMGO other lifts, adhere to the principle of safety, durability, convenience and best performance.
- Features
- Specifications
- Detailed Image
Detailed Product Information

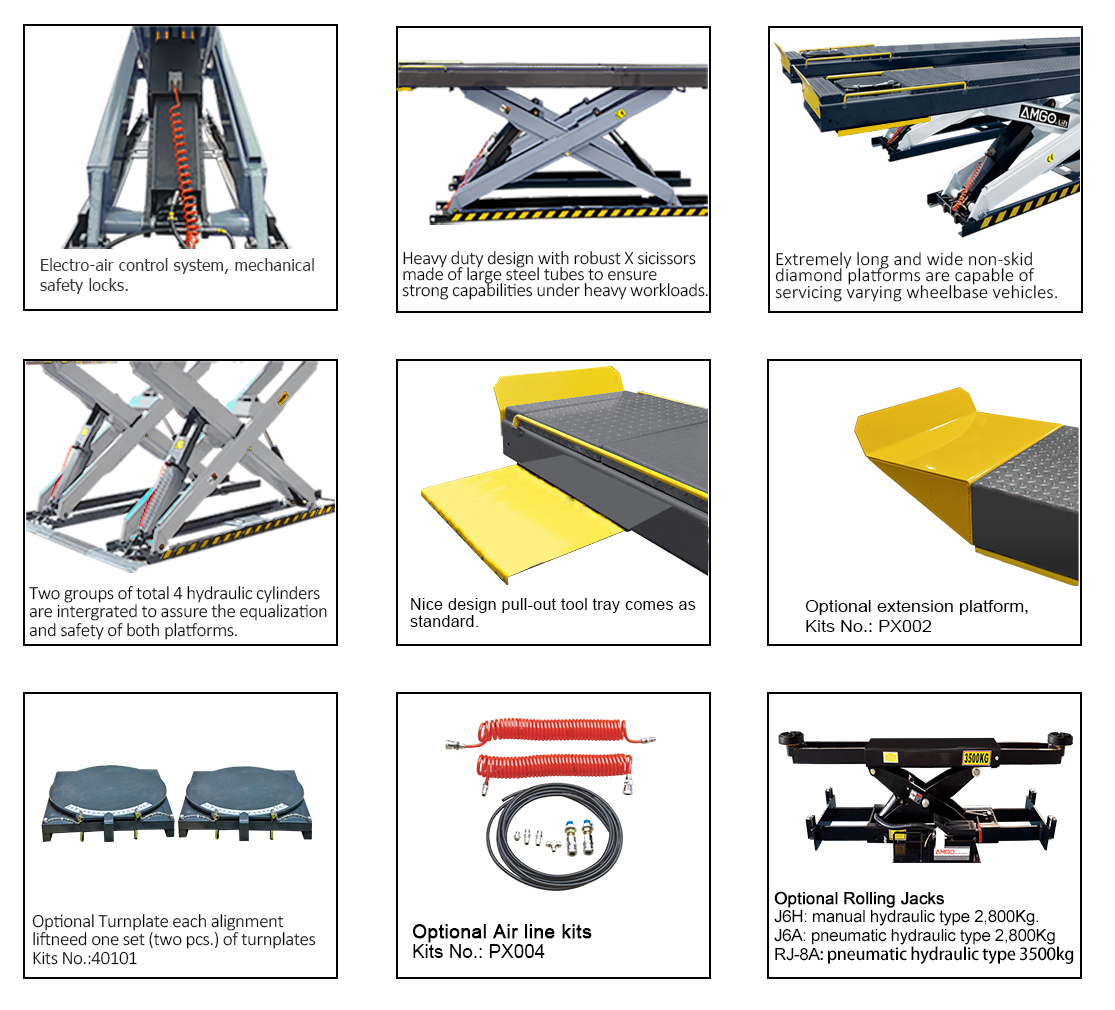

• Double dual synchronous cylinders.
• Electro-air control system, which operates the self-locking safety mechanism.
• Heavy-duty design, the X serial scissor lifts use large steel tube to make it strong and assures the runways remain level during working.
• Skid proof diamond platform to avoid skidding.
• Optional rolling jacks:
J6H: 2800kg lifting capacity with manual control.
J6A: 2800kg lifting capacity with pneumatic pump.
| Model | X550A |
| Lifting Capacity | 5500kg |
| Lifting Time | 75S |
| A1:Max. Lifting Height | 1870mm |
| A2:Minimum Height | 300mm |
| B:Runway Length | 5018mm |
| C:Overall Width | 2290mm |
| D:Width Between Runways | 1040mm |
| E:Overall Length(Inc. Ramps) | 6554mm |
| F:Min. Four Wheel Align | 2080mm |
| G:Max. Four Wheel Align | 4260mm |
| H:Max. Two Wheel Align | 4420mm |
| Gross Weigh | 2624Kg |
| Motor | 4.0HP |
